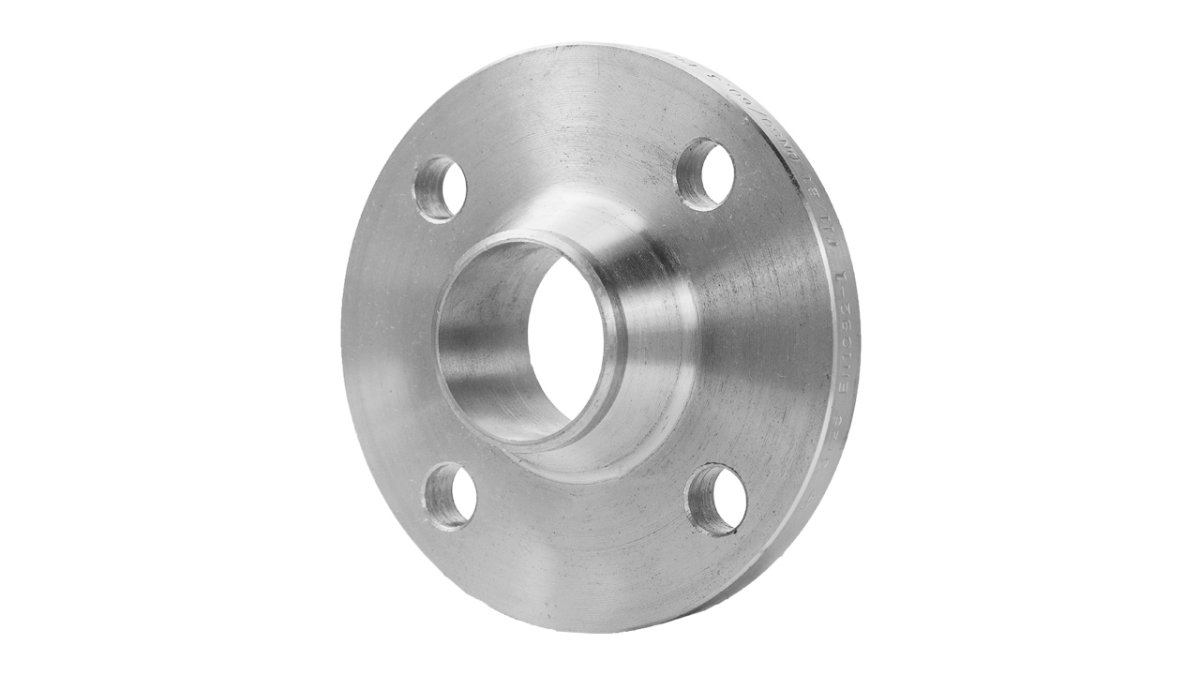

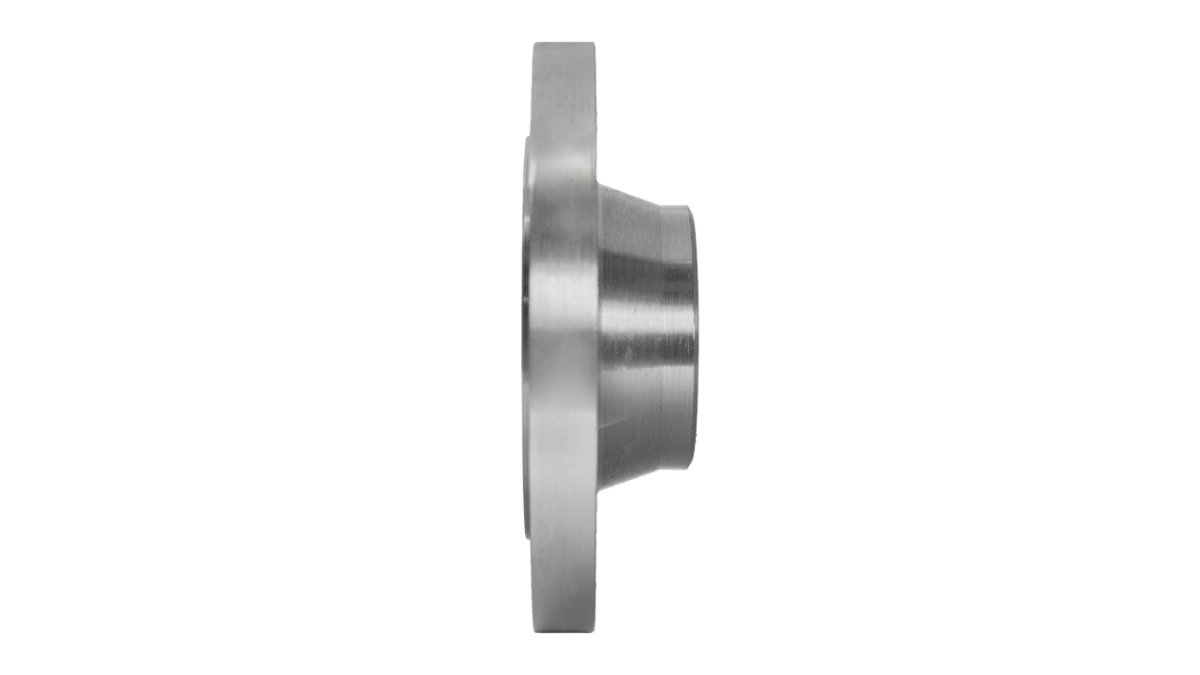

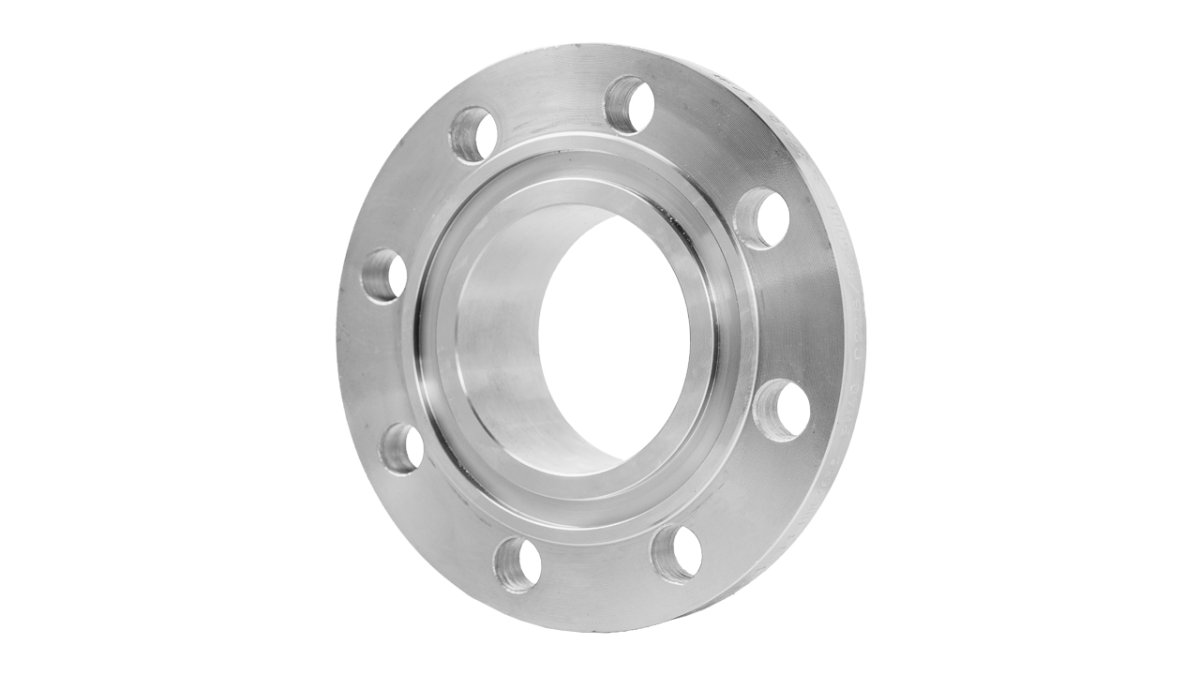

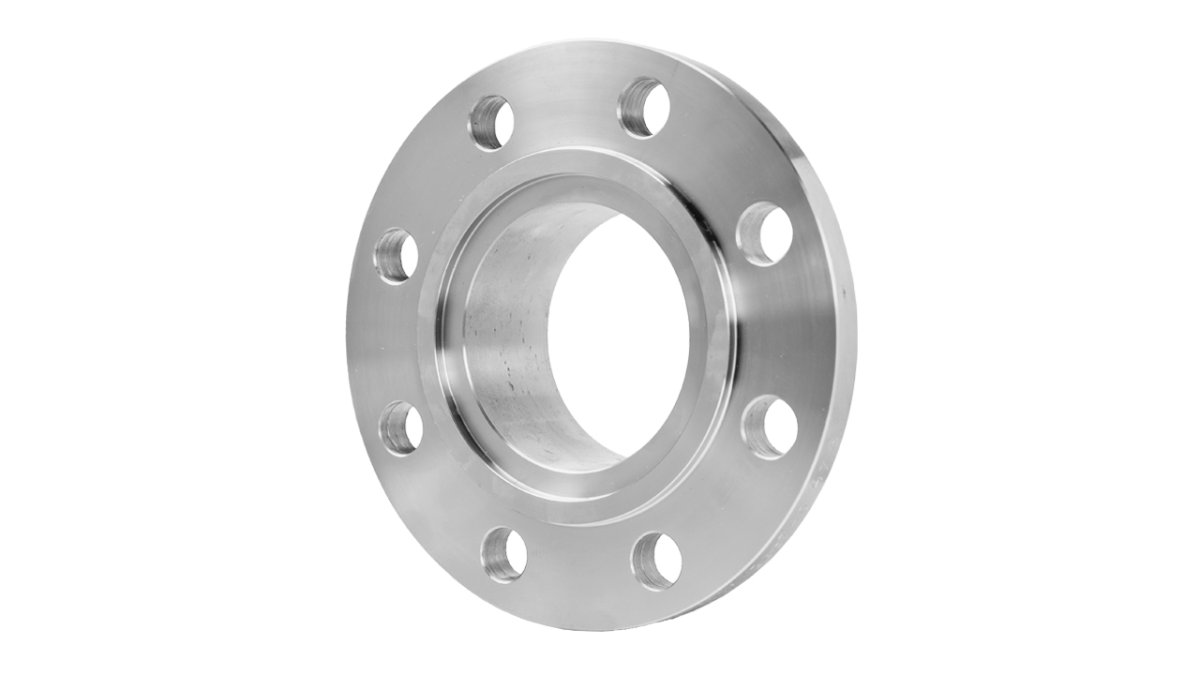

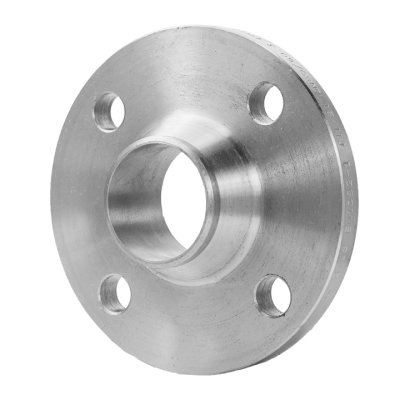

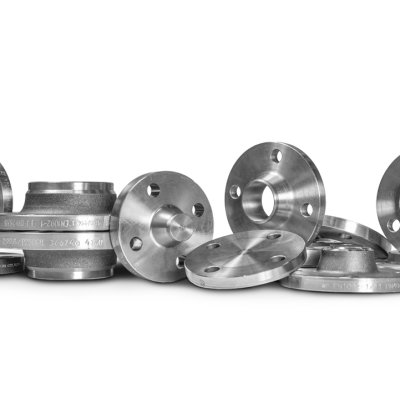

Welding Neck flange | Type 11
Welding neck flanges according to EN1092-1 Type 11 (DIN 2627 - 2638) are often used in installations, piping systems, appendages or in equipment construction. Nijhuis & Wigger can supply suitable welding neck flanges for every quality, pipe size and pressure class.
- Available pressure classes PN 6 - PN 400
- Thicker schedule sizes than EN-standard available, like STD/XS according ASME
- Dimensions up to DN 3600

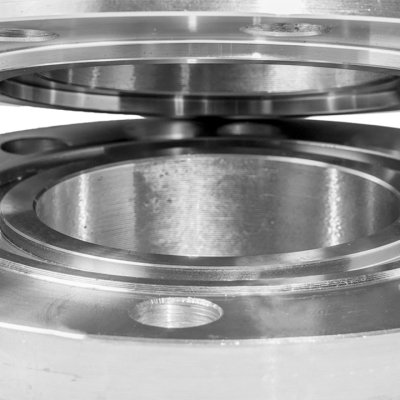

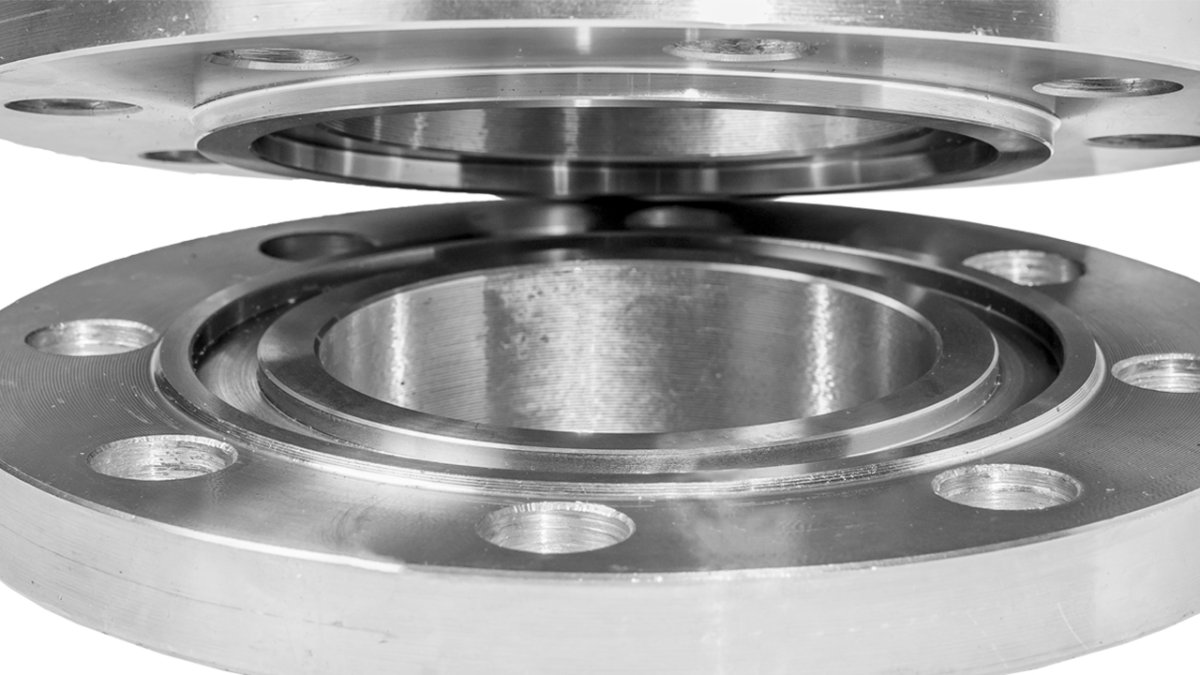

- Different sealing surfaces available like Nut (Form D), Feder (Form C) or according specification
- Stock item (see stock programme in downloads)
We deliver welding neck flanges in the following material grades:
| DIN standard | EN standard |
| Carbon steel | |
| C22.8 | P250GH |
| Rst 37.2 | S235JRG2 |
| 15Mo3 | 16Mo3 |
| 13CrMo44 | 13CrMo4-5 |
| W/TSTE 355 | P355QH1 |
| P355NL1 | |
| P355NH | |
| 10CrMo9-10 | 11CrMo9-10 |
| Stainless steel | |
| 1.4301 / 1.4307 / 1.4541 | |
| 1.1104 / 1.4404 / 1.4571 | |
| 1.4462 (Duplex) | |
| 1.4501 (Superduplex) |
According to the standard DIN/EN1092-1 welding neck flanges are separated in:
| DIN standard | EN standard | Type | Pressure |
| 2631 | EN 1092-1 | 11 | PN 6 |
| 2632 | EN 1092-1 | 11 | PN 10 |
| 2633 | EN 1092-1 | 11 | PN 16 |
| 2634 | EN 1092-1 | 11 | PN 25 |
| 2635 | EN 1092-1 | 11 | PN 40 |
| 2636 | EN 1092-1 | 11 | PN 63 |
| 2637 | EN 1092-1 | 11 | PN 100 |
| 2638 | EN 1092-1 | 11 | PN 160 |
| 2628 | EN 1092-1 | 11 | PN 250 |
| 2629 | EN 1092-1 | 11 | PN 320 |
| 2627 | EN 1092-1 | 11 | PN 400 |
Click on one of the PDF logos to start the download.
 |
Schedule sizes |
|
Stock programme |
|
Delivery programme |

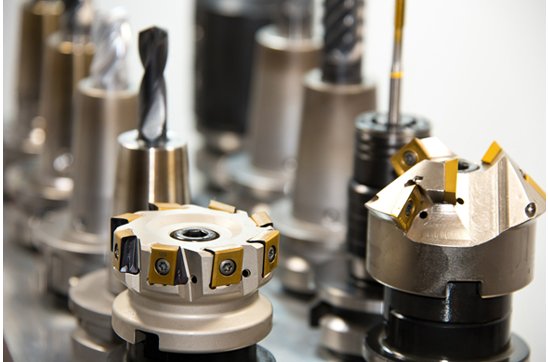

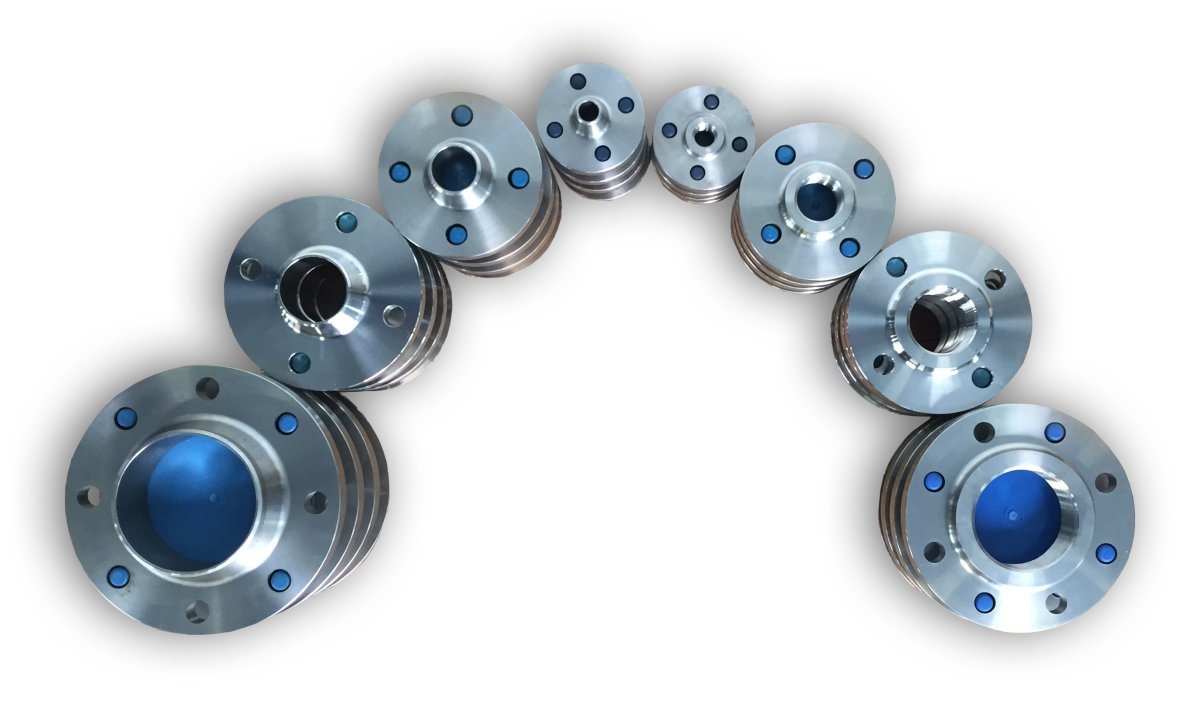

Machining Welding Neck flanges
according standard or specificationWelding Neck flanges can be machined in several ways. For example machining the sealing surface to Smooth Finish (Ra.3.2-6.3) or changing the schedule size.
View options
Custom made flanges
It is also possible to manufacture special flanges according to your wishes and drawings. Our sales team is happy to
assist you.
