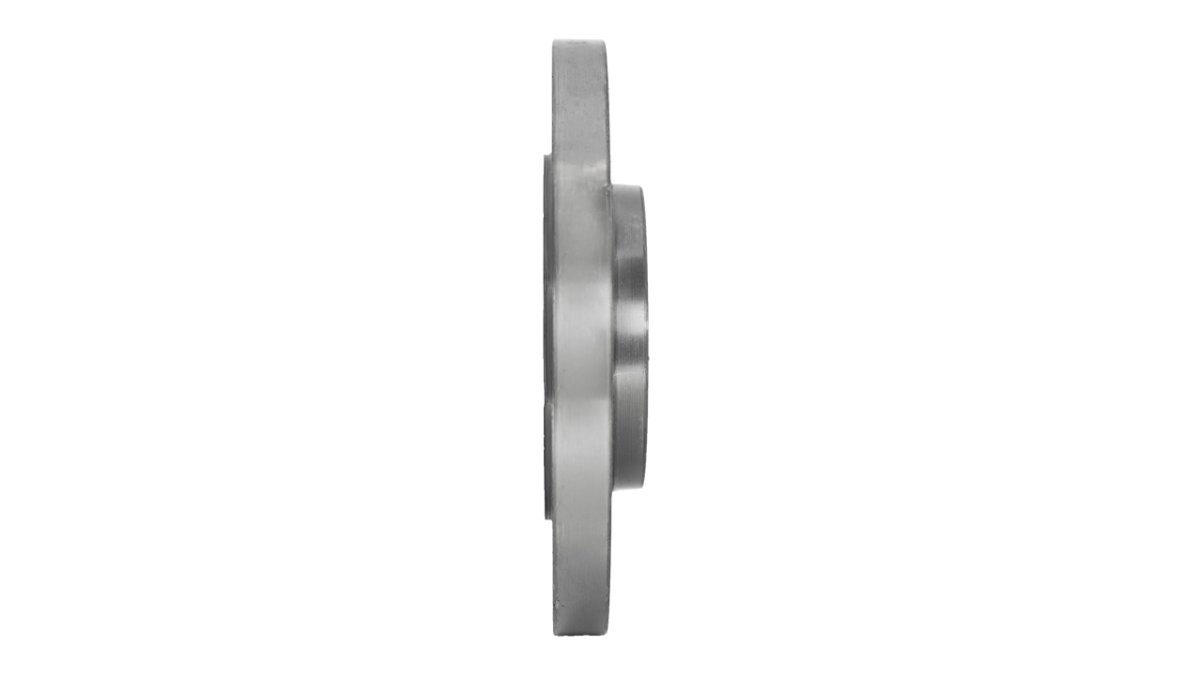

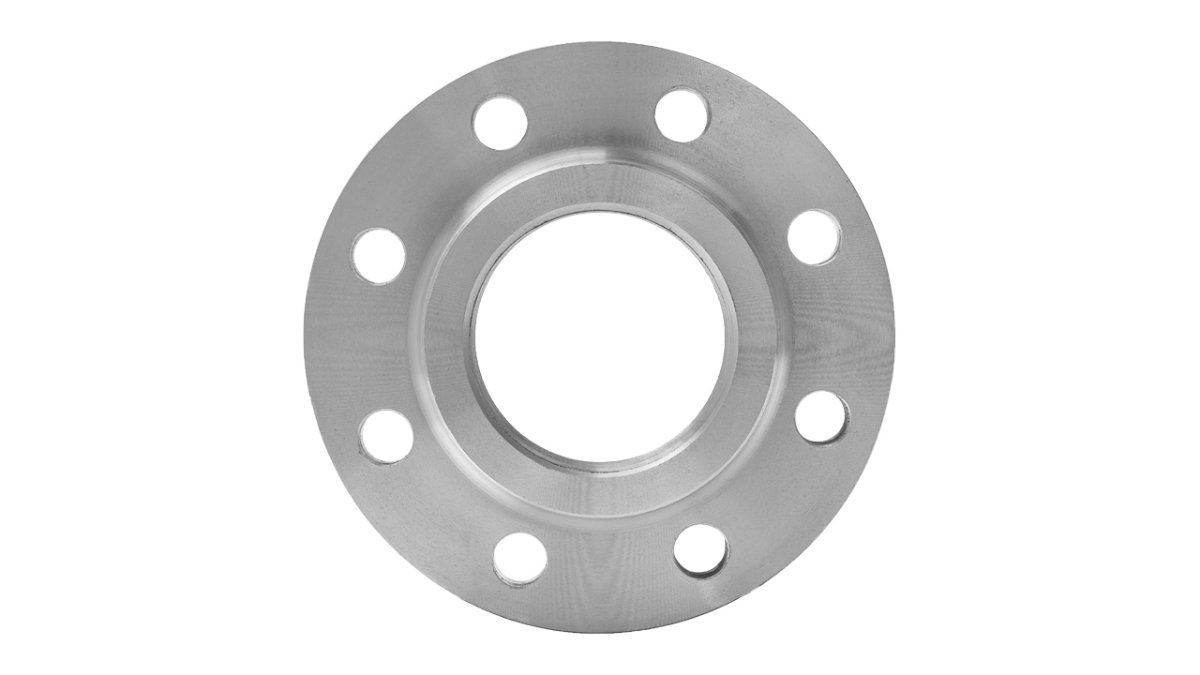

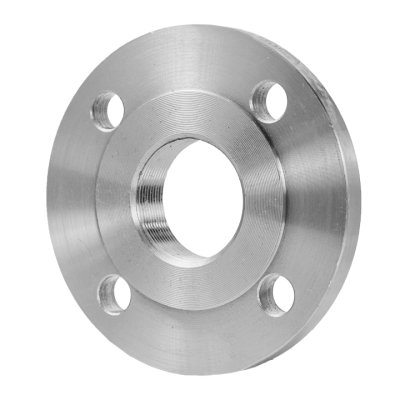

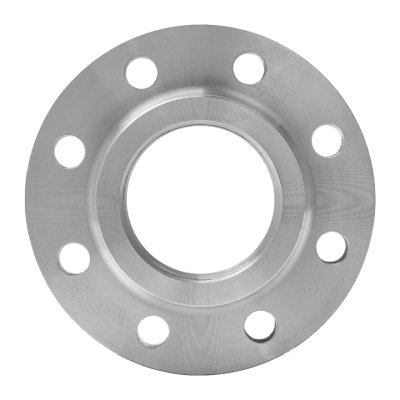

Threaded flange | Type 13

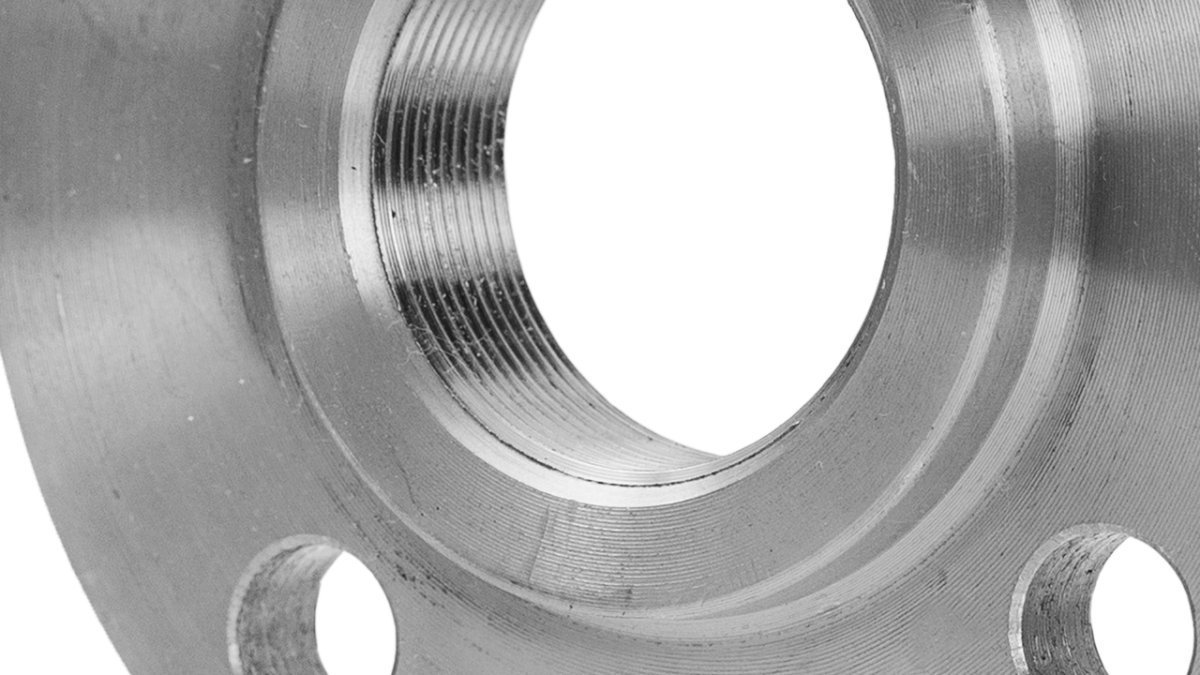

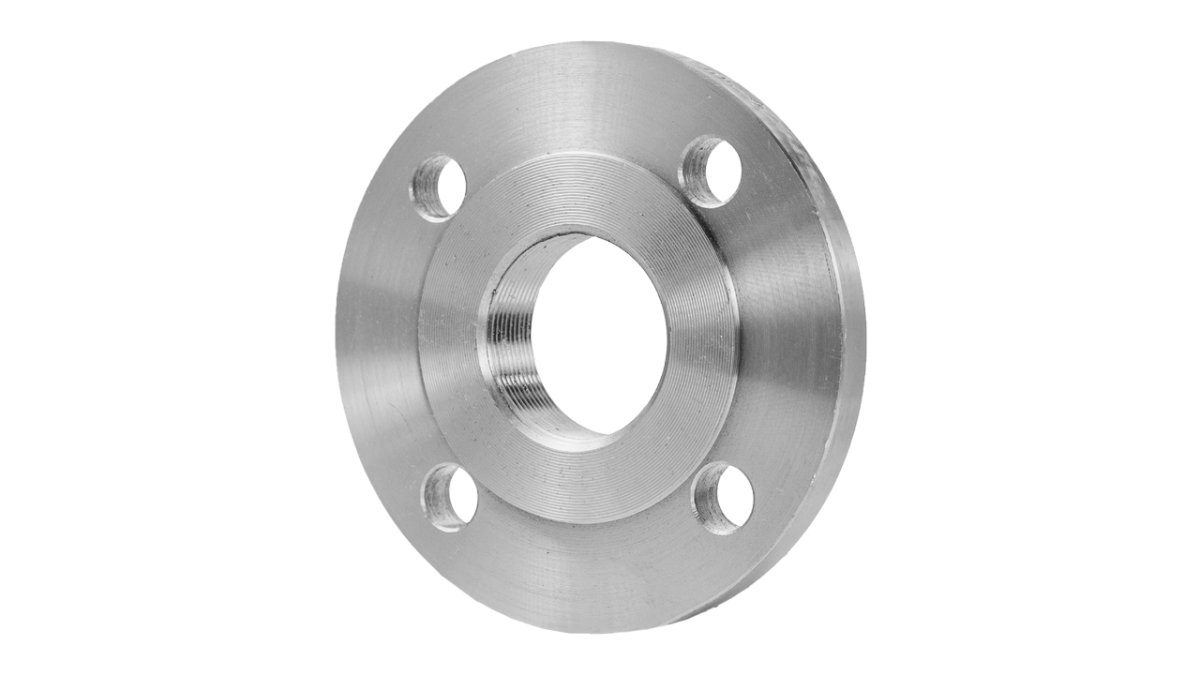

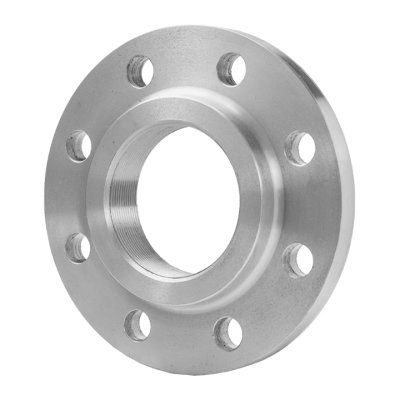

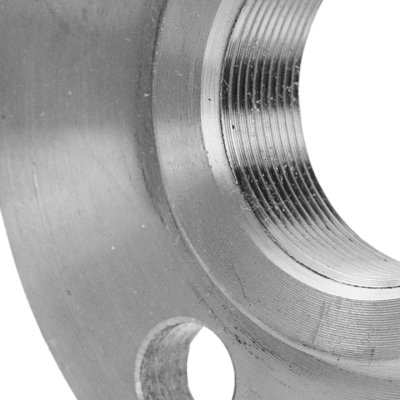

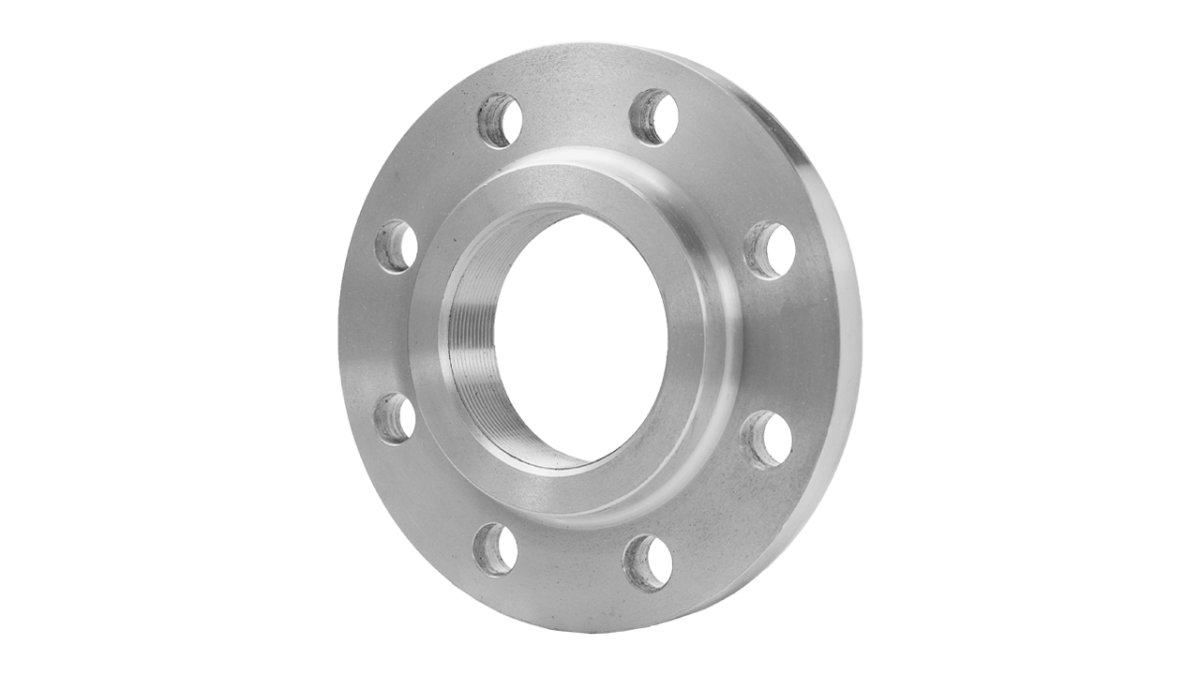

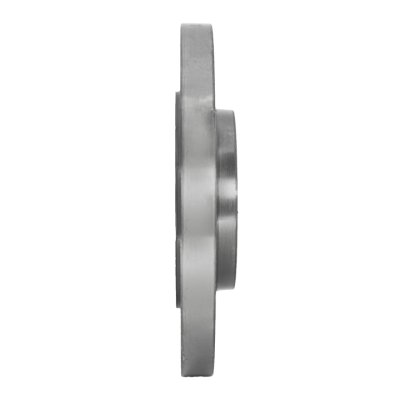

Threaded flanges according to EN1092-1 Type 13 (DIN 2566) are often used in installations, piping systems or equipment construction. These flanges are screwed onto the pipe ends using the screw thread. Nijhuis & Wigger can supply suitable threaded flanges for every quality, pipe size and pressure class.
- Available pressure classes PN 6 - PN 100
- Dimensions up to DN 100
- BSP thread
- Stock item (see stock programme in downloads)
We deliver threaded flanges in the following material grades:
| DIN standard | EN standard |
| Carbon steel | |
| C22.8 | P250GH |
| Rst 37.2 | S235JRG2 |
| 15Mo3 | 16Mo3 |
| 13CrMo44 | 13CrMo4-5 |
| W/TSTE 355 | P355QH1 |
| P355NL1 | |
| P355NH | |
| 10CrMo9-10 | 11CrMo9-10 |
| Stainless steel | |
| 1.4301 / 1.4307 / 1.4541 | |
| 1.1104 / 1.4404 / 1.4571 | |
| 1.4462 (Duplex) | |
| 1.4501 (Superduplex) |
According to the standard DIN/EN1092-1 threaded flanges are separated in:
| DIN standard | EN standard | Type | Pressure |
| EN 1092-1 | 13 | PN 6 | |
| 2566 | EN 1092-1 | 13 | PN 10 |
| 2566 | EN 1092-1 | 13 | PN 16 |
| EN 1092-1 | 13 | PN 25 | |
| EN 1092-1 | 13 | PN 40 | |
| EN 1092-1 | 13 | PN 63 | |
| EN 1092-1 | 13 | PN 100 |
Click on one of the PDF logos to start the download.
 |
Stock programme |
|
Delivery programme |
Machining threaded flanges
according standard or specificationThreaded flanges can be machined in several ways. For example machining the sealing surface.
View options
Custom made flanges
It is also possible to manufacture special flanges according to your wishes and drawings. Our sales team is happy to
assist you.
