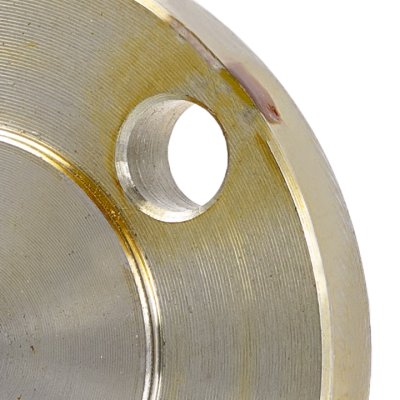

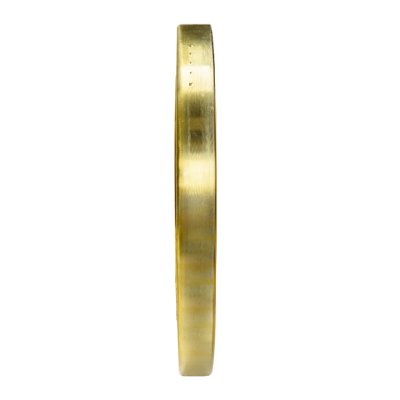

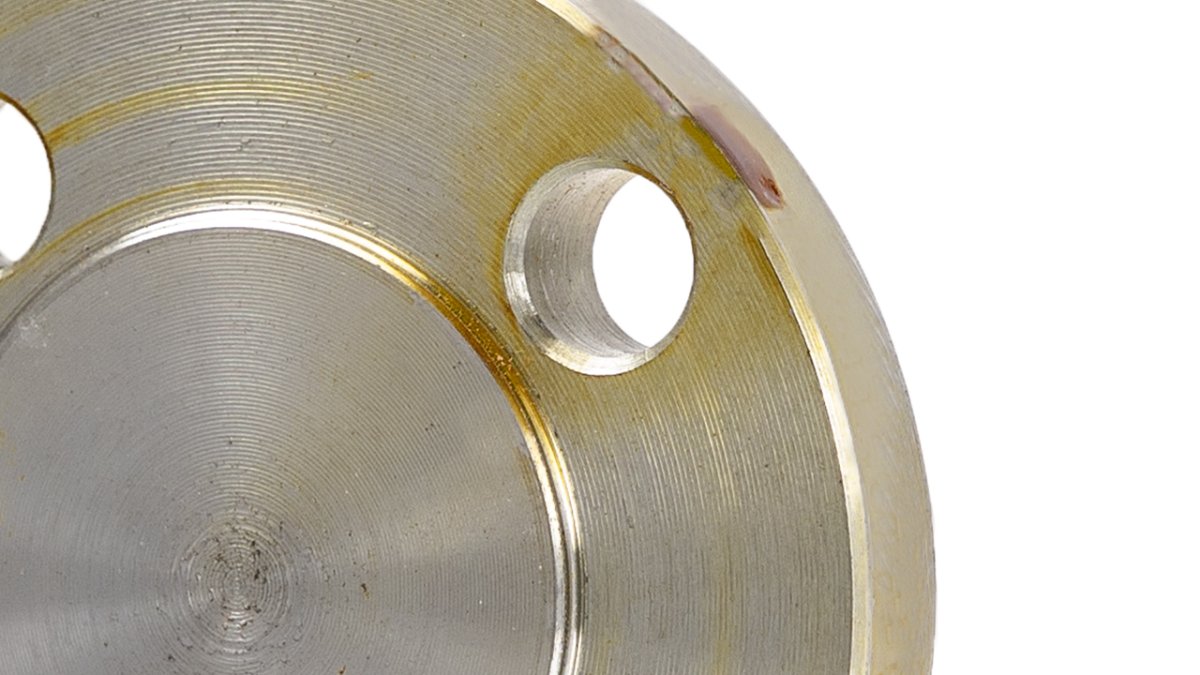

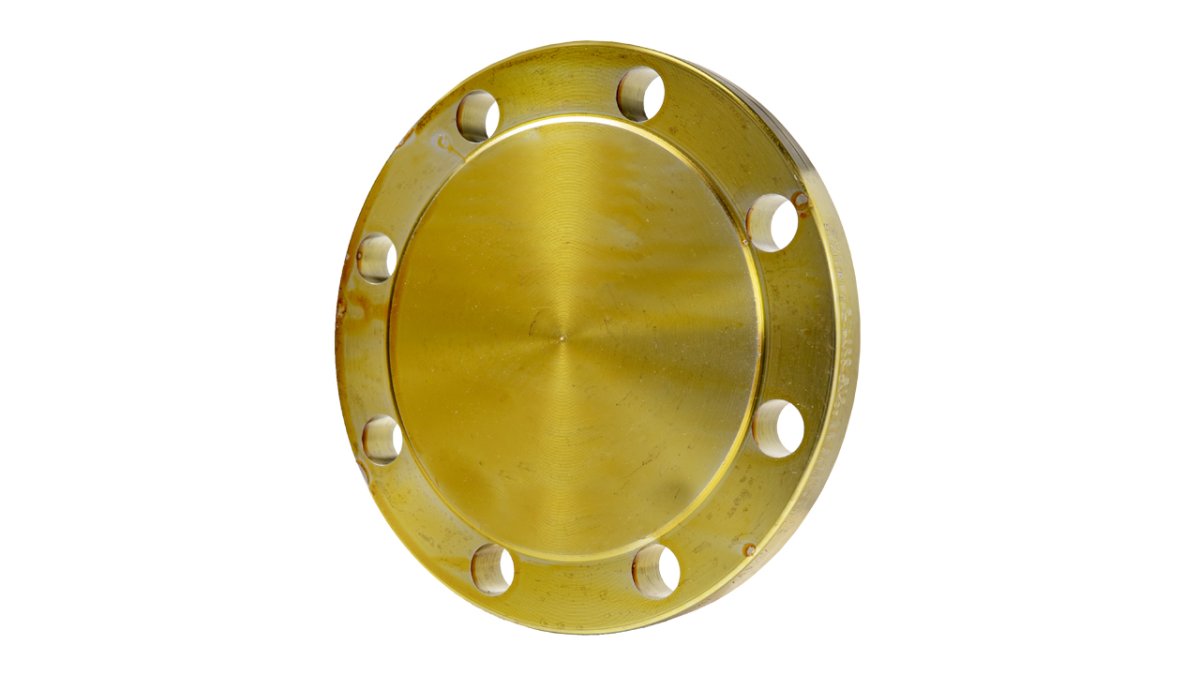

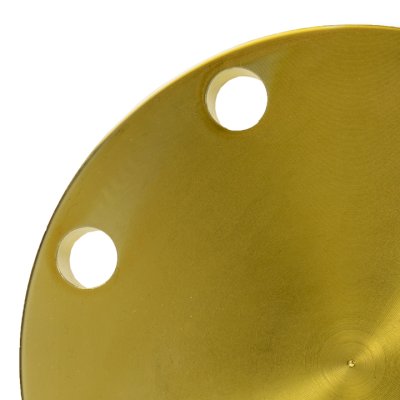

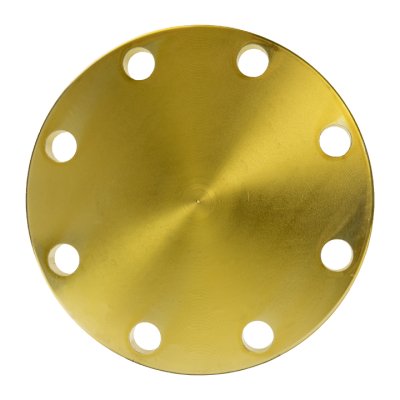

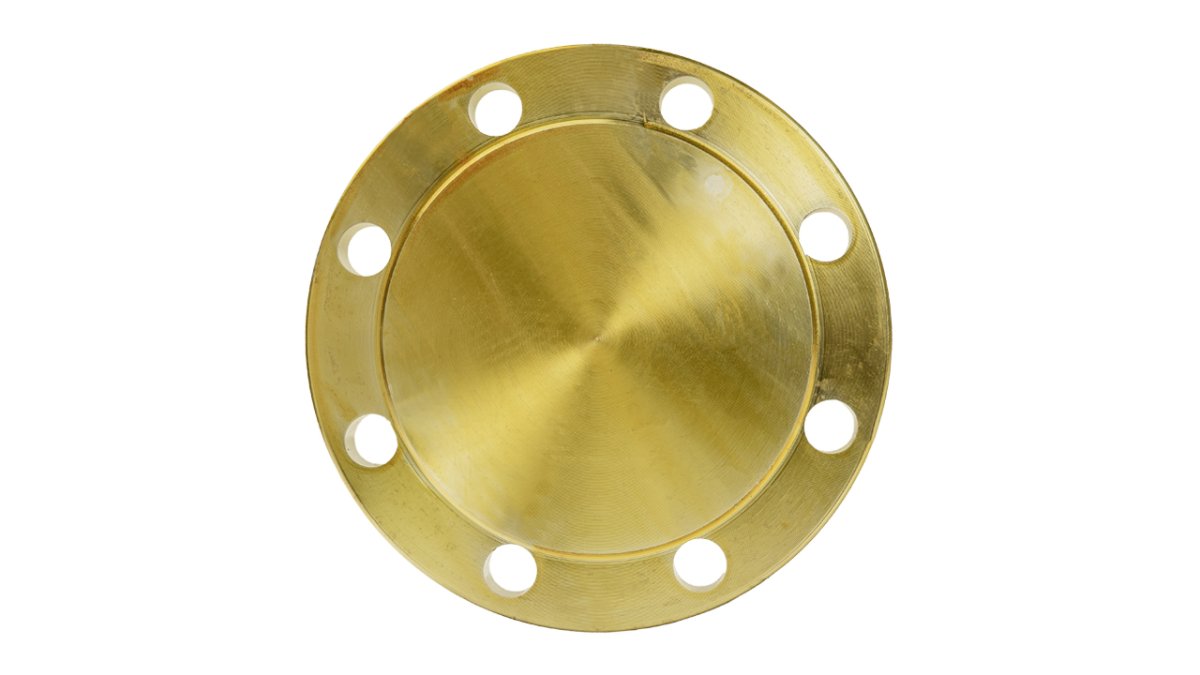

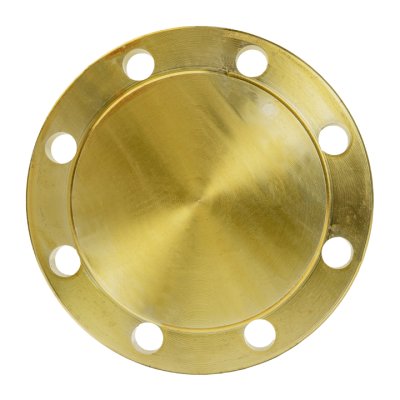

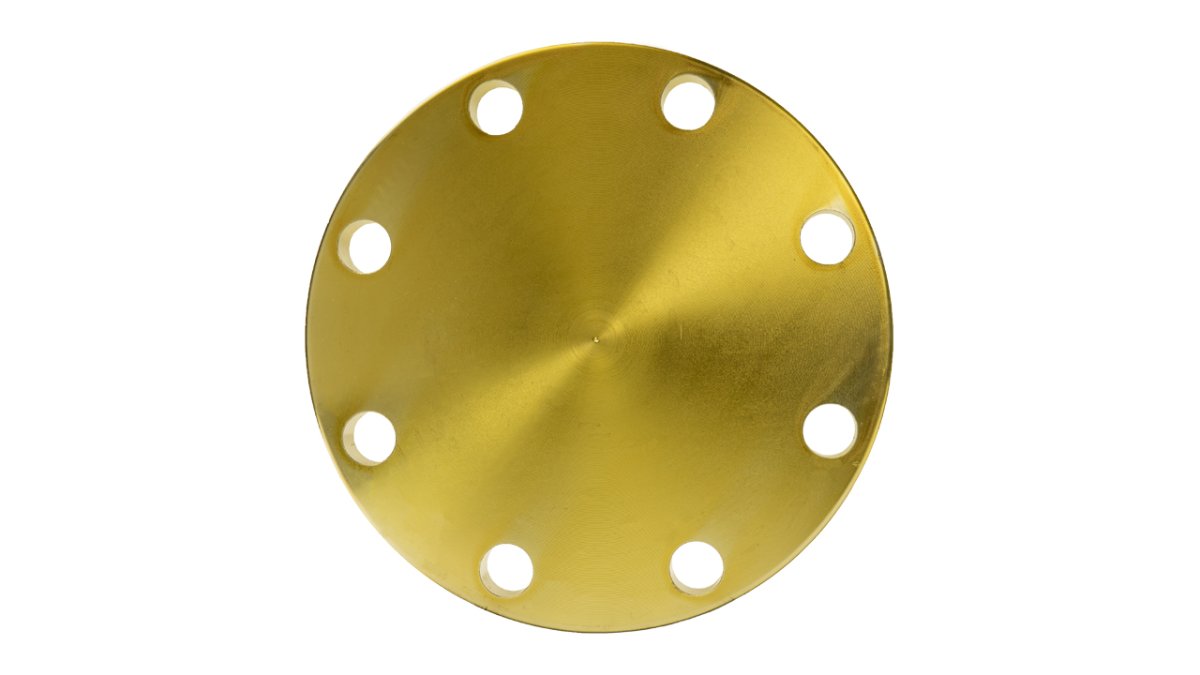

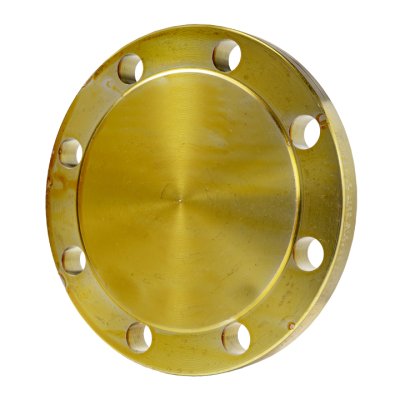

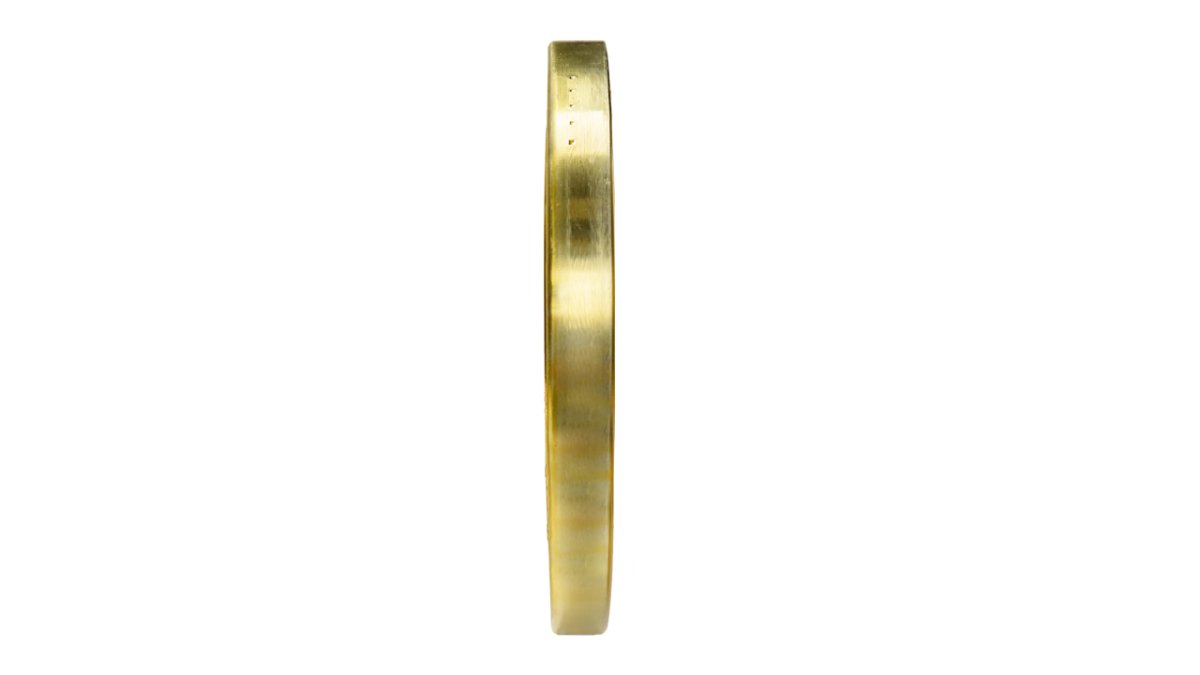

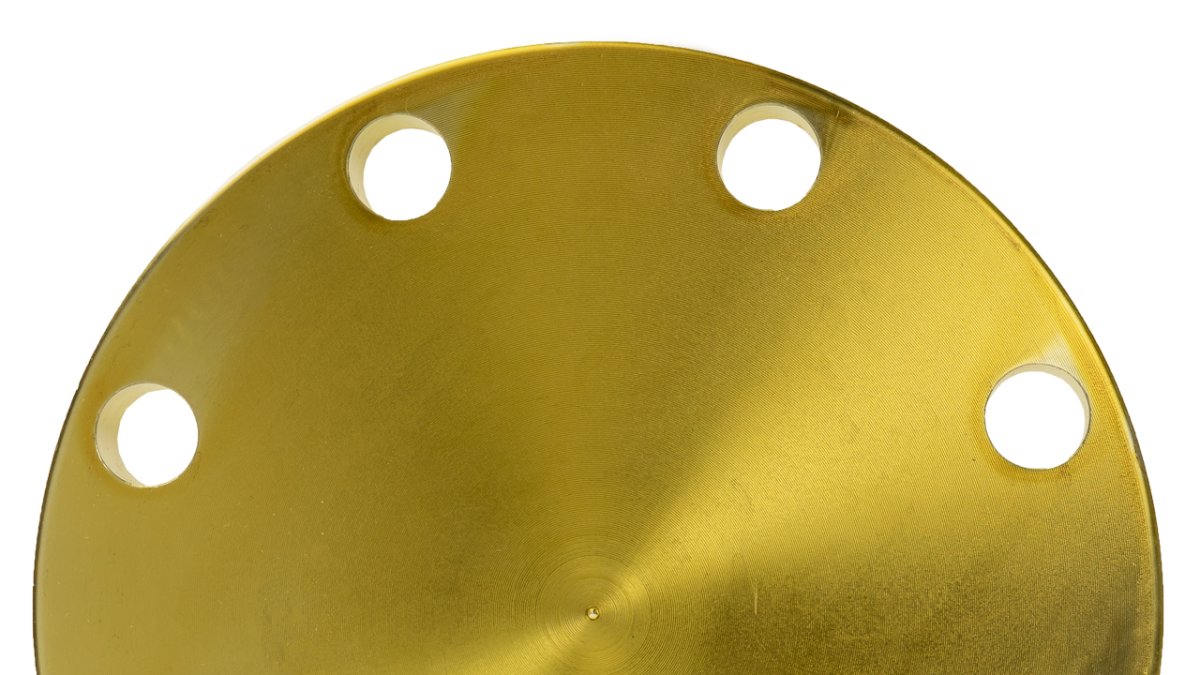

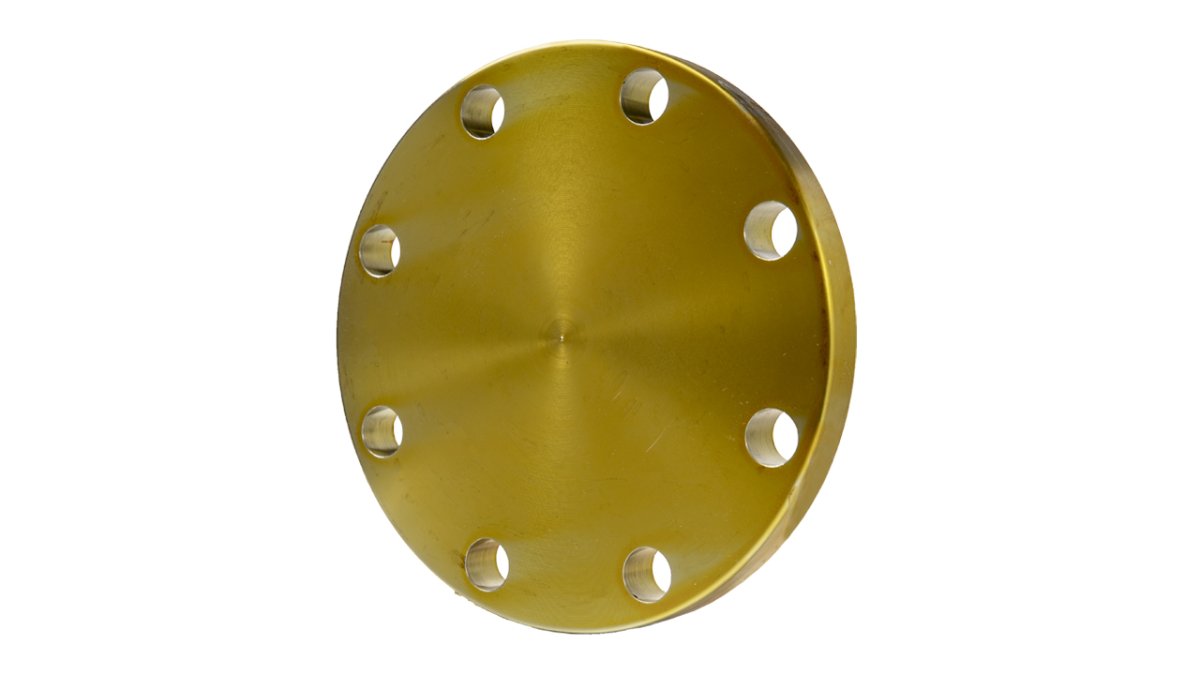

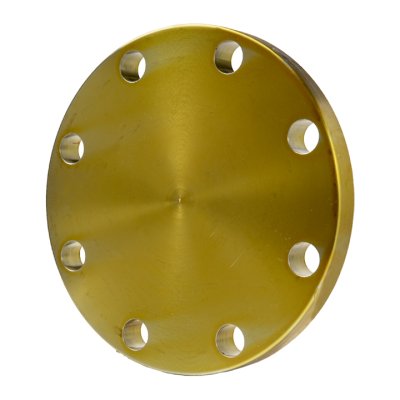

Blind flange
Blind flanges according ASME B16.5 / B16.47 type A/B are often used in installations, piping systems or in equipment construction to close an open pipe end. Nijhuis & Wigger can supply suitable blind flanges for every quality, pipe size and pressure class.
- Available pressure classes: 150 lbs - 2500 lbs / 2.000 - 20.000 PSI
- Type A and B available
- Dimensions up to 60”
- Different sealing surfaces available like RF, FF, LRF, RTJ or according specification
- Stock item (see stock programme in downloads)
We deliver blind flanges in the following material grades:
| ASME standard |
| Carbon steel |
| A/SA105N / C21, P265GH |
| A/SA350 LF2 / P355QH1 |
| A/SA182 Gr. F1,F5,F9,F11,F12,F22,F91. |
| A694 Gr. F52,F60,F65,F70 |
| Stainless steel |
| A/SA182Gr. 304/304L |
| A/SA182Gr. 316/316L |
| A/SA182 F321(H) |
| F51(Duplex) / F53(Superduplex) |
| Special Alloys |
| Hastelloy C276/C22 |
According to the ASME standard blind flanges are separated in:
| ASME standard | Pressure class |
| B16.5 - B16.47 A/B | 150 lbs |
| B16.5 - B16.47 A/B | 300 lbs |
| B16.5 - B16.47 A/B | 400 lbs |
| B16.5 - B16.47 A/B | 600 lbs |
| B16.5 - B16.47 A/B | 900 lbs |
| B16.5 - B16.47 A/B | 1500 lbs |
| B16.5 - B16.47 A/B | 2500 lbs |
Click on one of the PDF logos to start the download.
 |
Stock programme |
|
Delivery programme |
Machining blind flanges
according standard or specificationBlind flanges can be machined in several ways. For example machining the sealing surface to Smooth Finish (Ra.3.2-6.3) or tapping a NPT thread hole.
View options

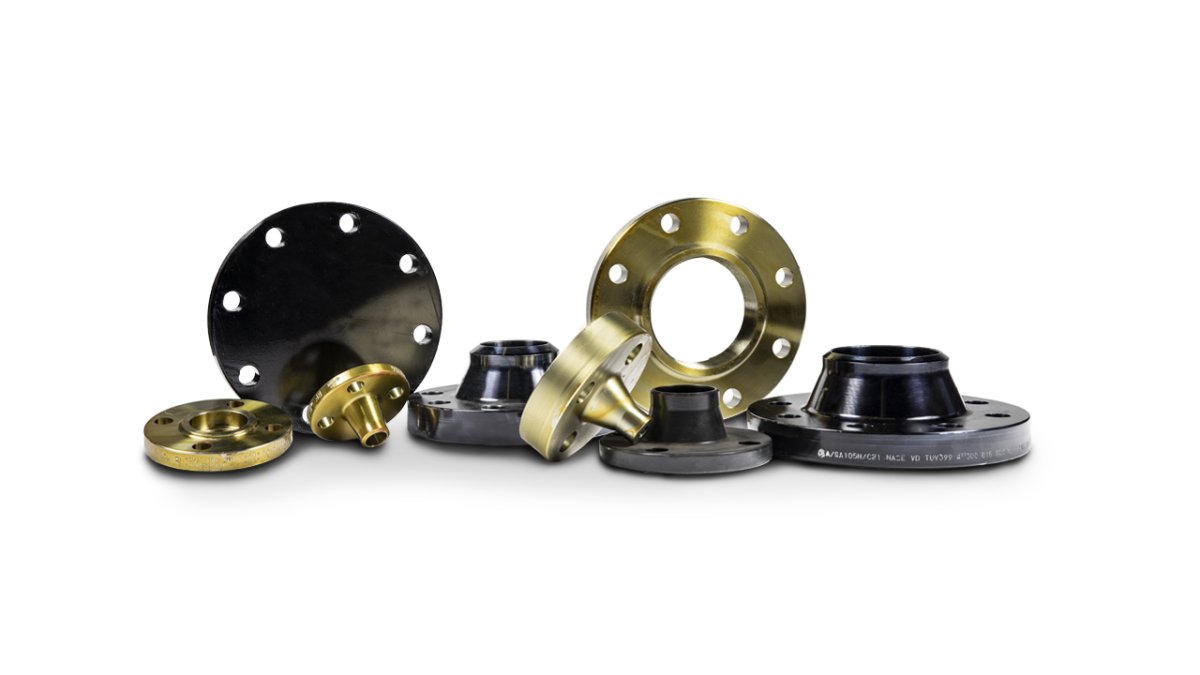

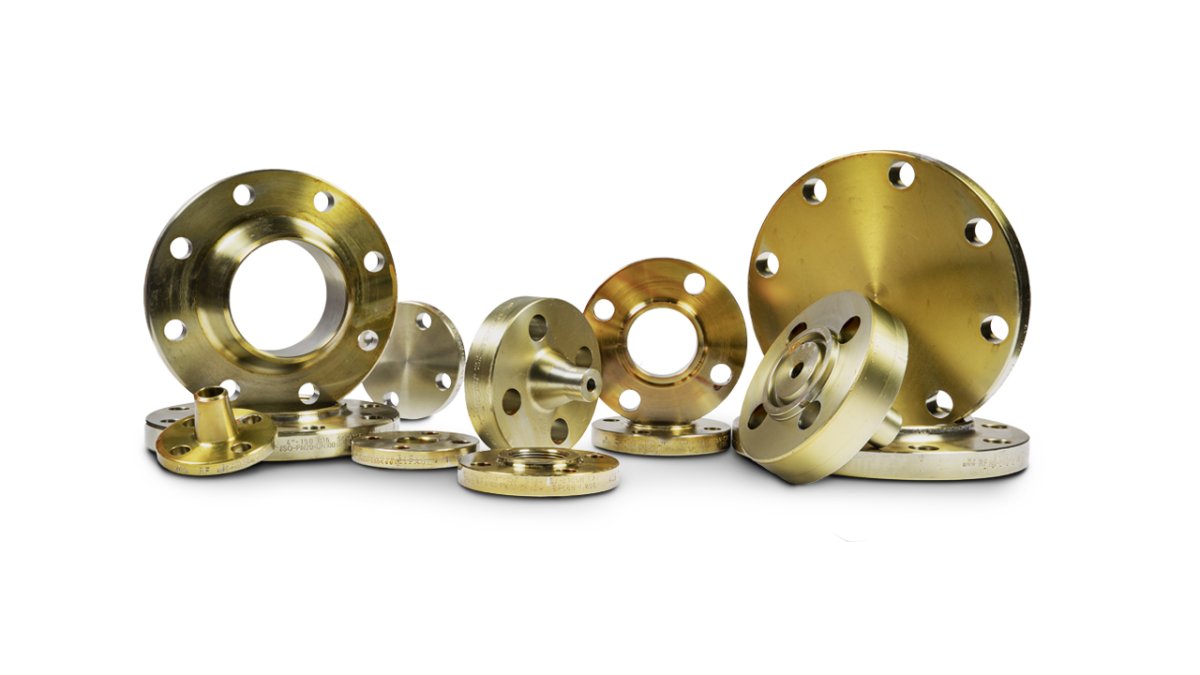

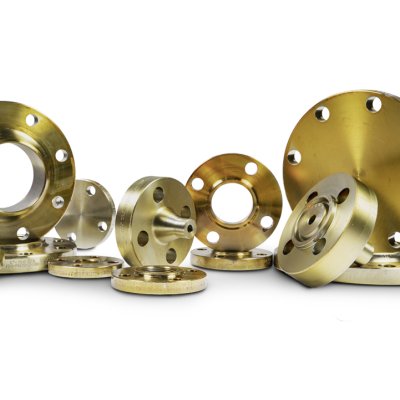

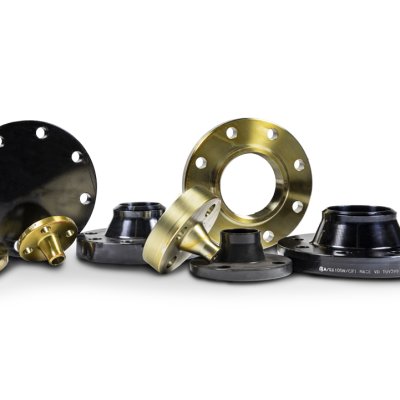

Custom made flanges
It is also possible to manufacture special flanges according to your wishes and drawings. Our sales team is happy to
assist you.
