Elbow

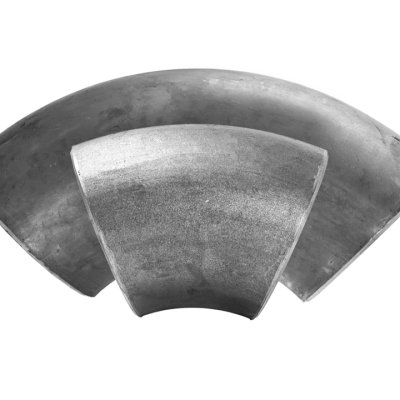

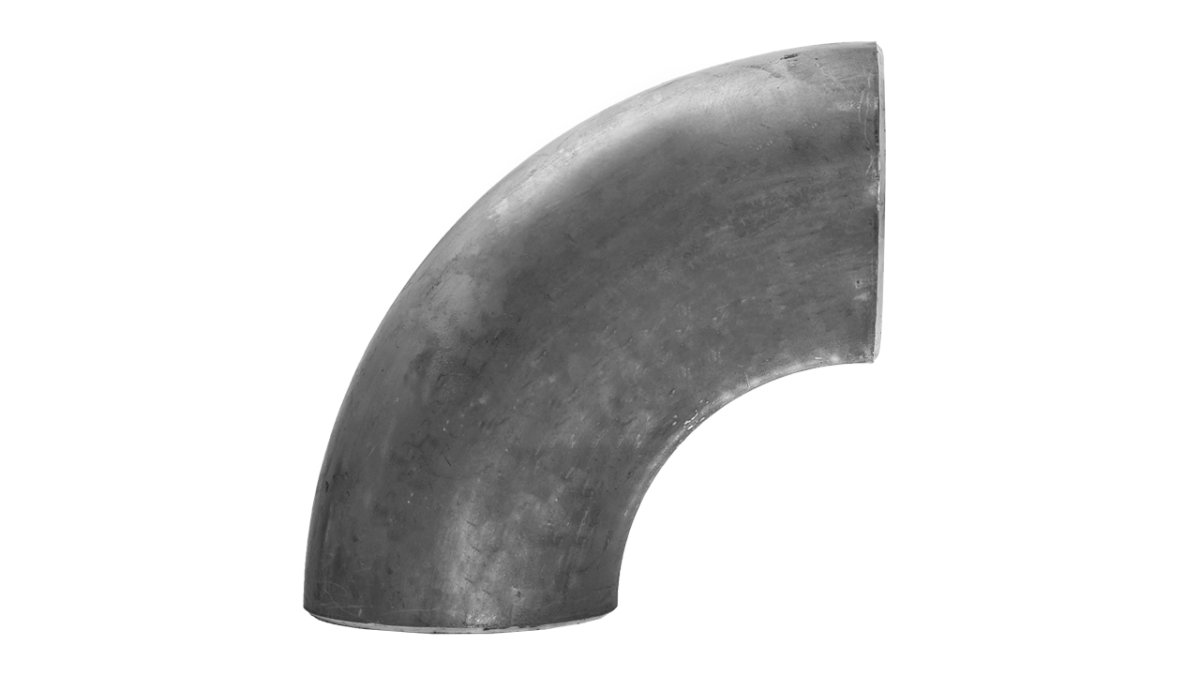

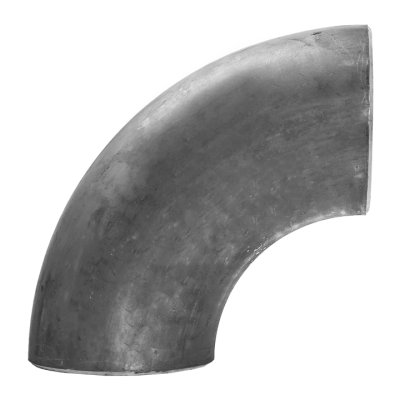

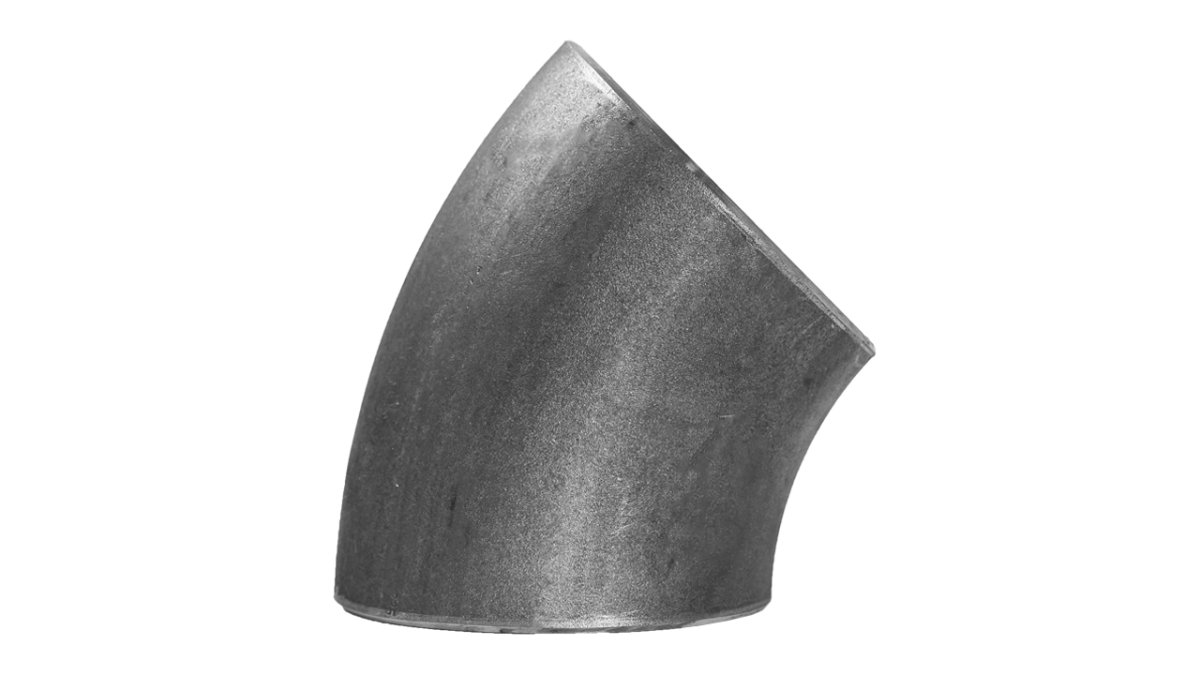

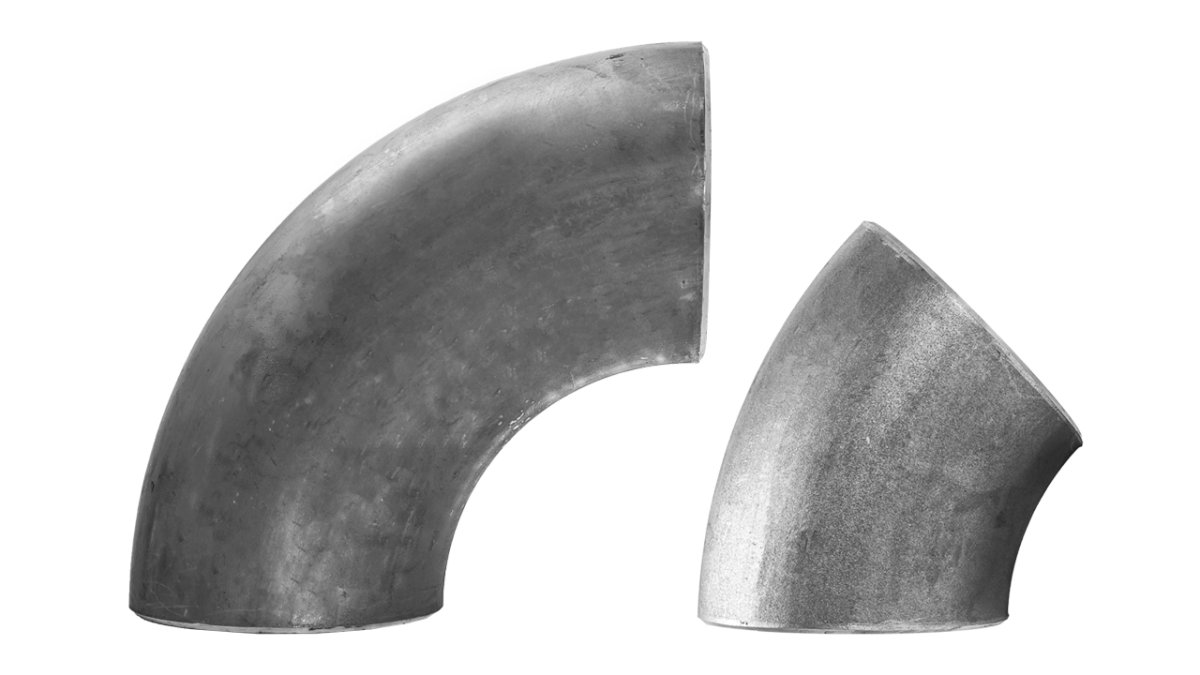

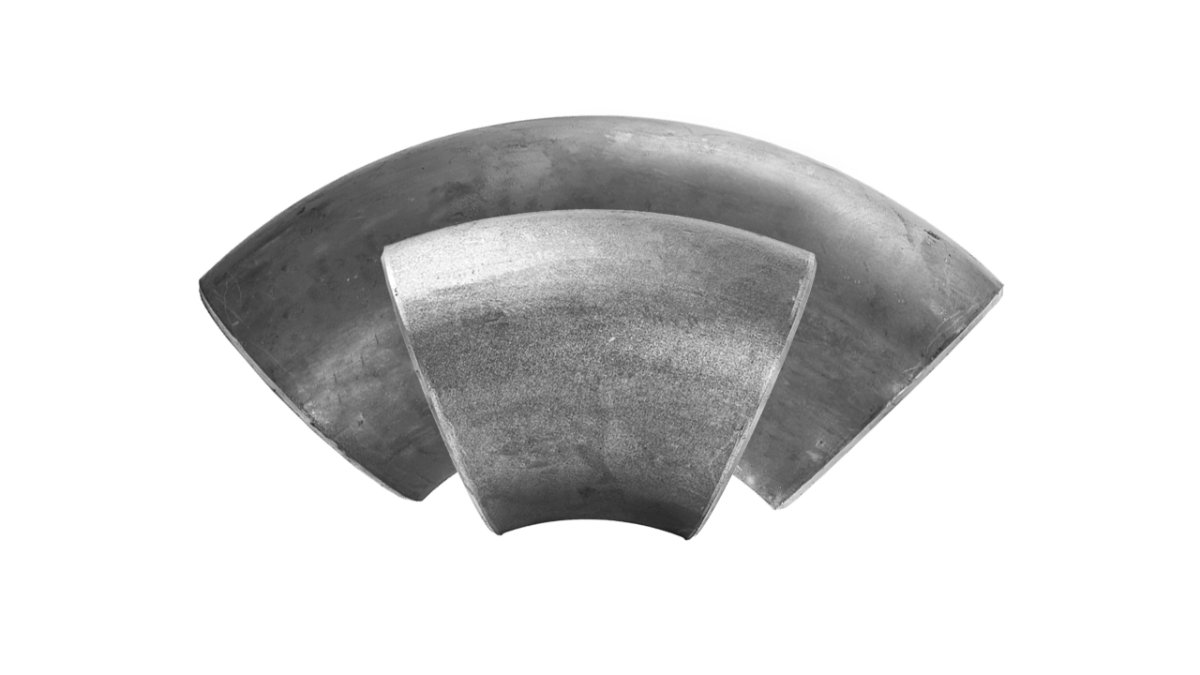

Seamless Elbows according EN10253 (DIN 2605) are often used in installations, piping systems or equipment construction. Nijhuis & Wigger can supply suitable Elbows for every quality, pipe size and radius.

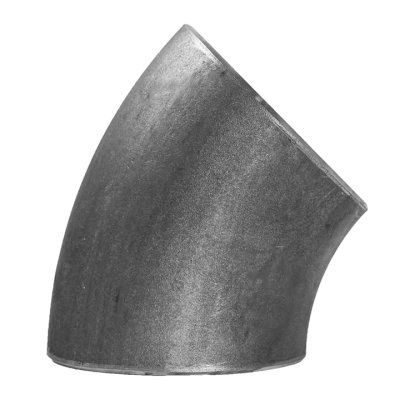

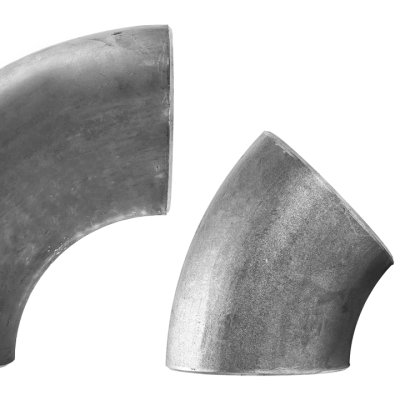

- Available in 45°, 90° and 180°
- Different radii (2D/3D/5D)
- Dimensions up to DN 400
- Different wall thicknesses available according EN10253 or specification
- Type A (Stock item: see stock programme in downloads)
- Type B (On request)
We deliver Elbows in the following material grades:
| EN standard |
| EN10253-2 (Carbon steel) |
| P265GH |
| P235GH TC1 |
| P235GH TC2 |
| 16Mo3 |
| 13CrMo4-5 |
| P355N/NL1 |
| P355NH |
| EN10253-4 (Stainless steel) |
| 1.4301 / 1.4306+7 / 1.4541 |
| 1.1104 / 1.4404 / 1.4571 |
| 1.4462 (Duplex) / 1.4501 (Superduplex) |
According to the standard EN10253 Elbows are separated in:
| DIN standard | EN standard | Type | Edition |
| 2605 T1/2 | EN 10253 | A/B | 2D |
| 2605 T1/2 | EN 10253 | A/B | 3D |
| 2605 T1/2 | EN 10253 | A/B | 5D |
Click on one of the PDF logos to start the download.
 |
Stock programme |
|
Delivery programme |

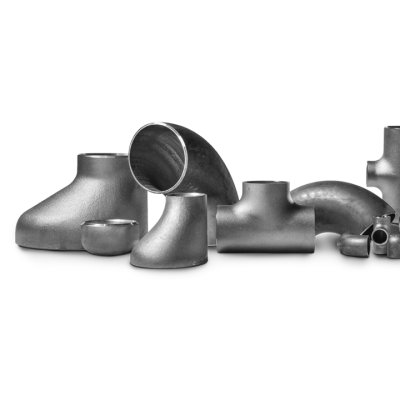

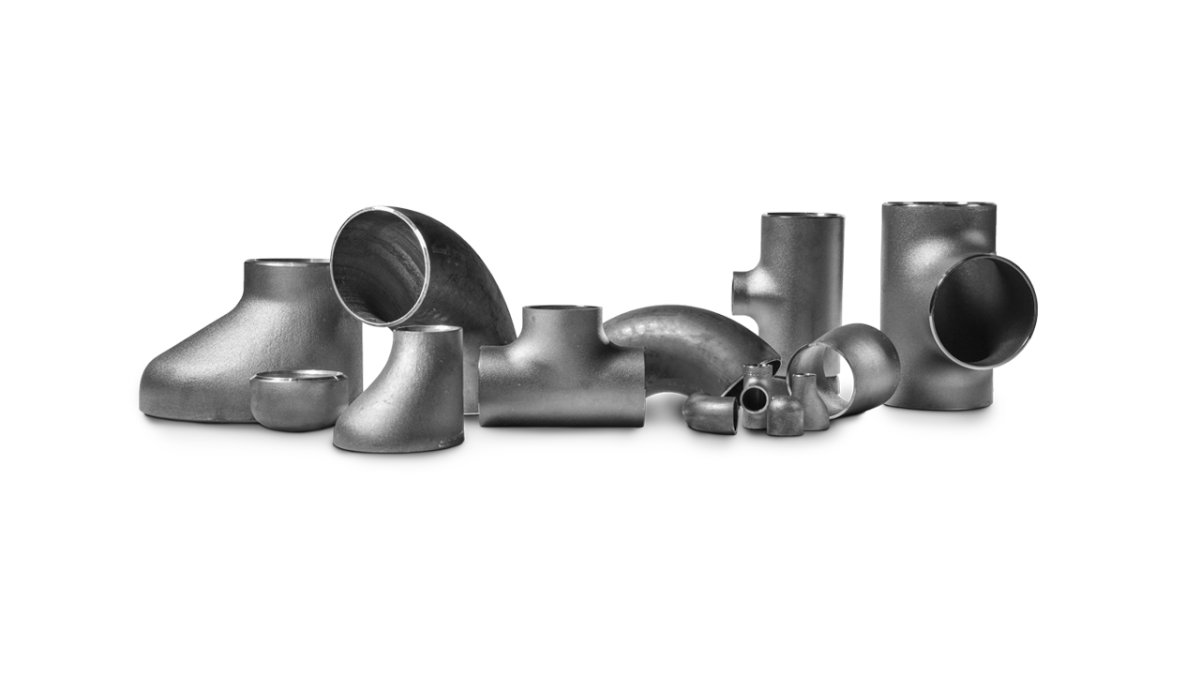

More fittings according EN10253

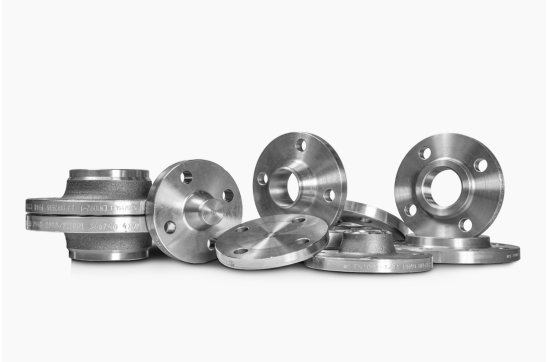

Require matching flanges?
We have an extensive stock of flanges for various applications and suitable for Elbows.
Go to flanges
