Elbow

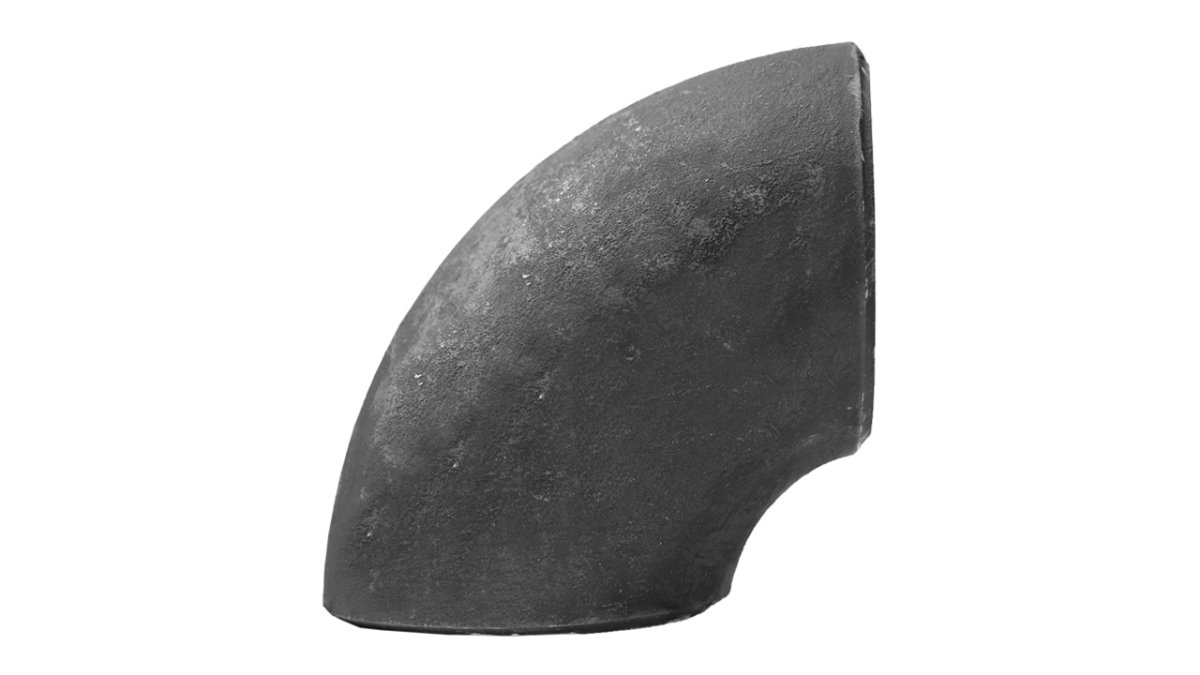

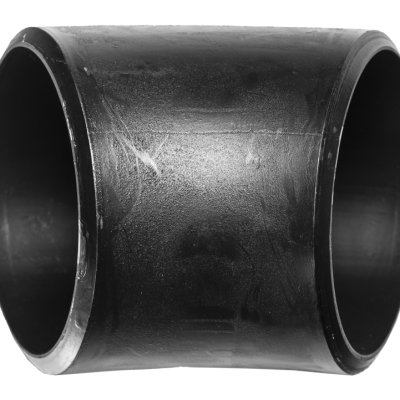

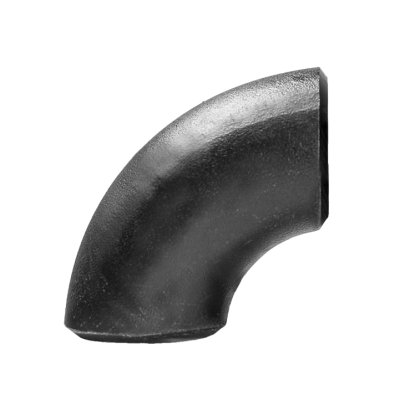

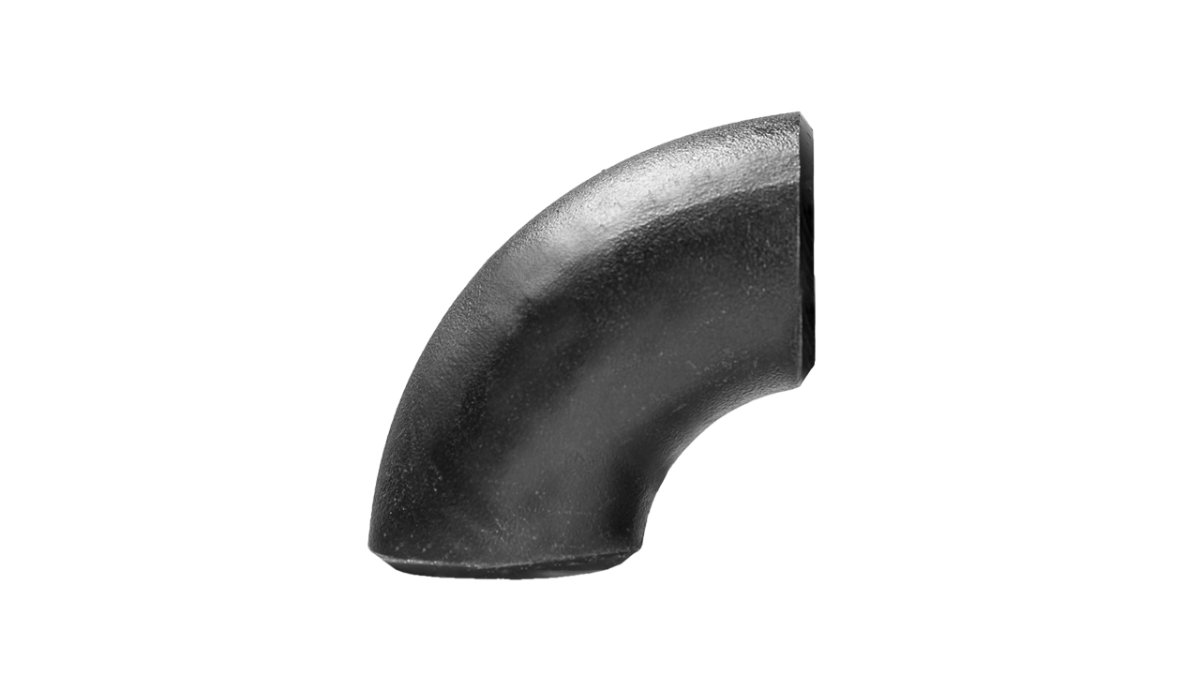

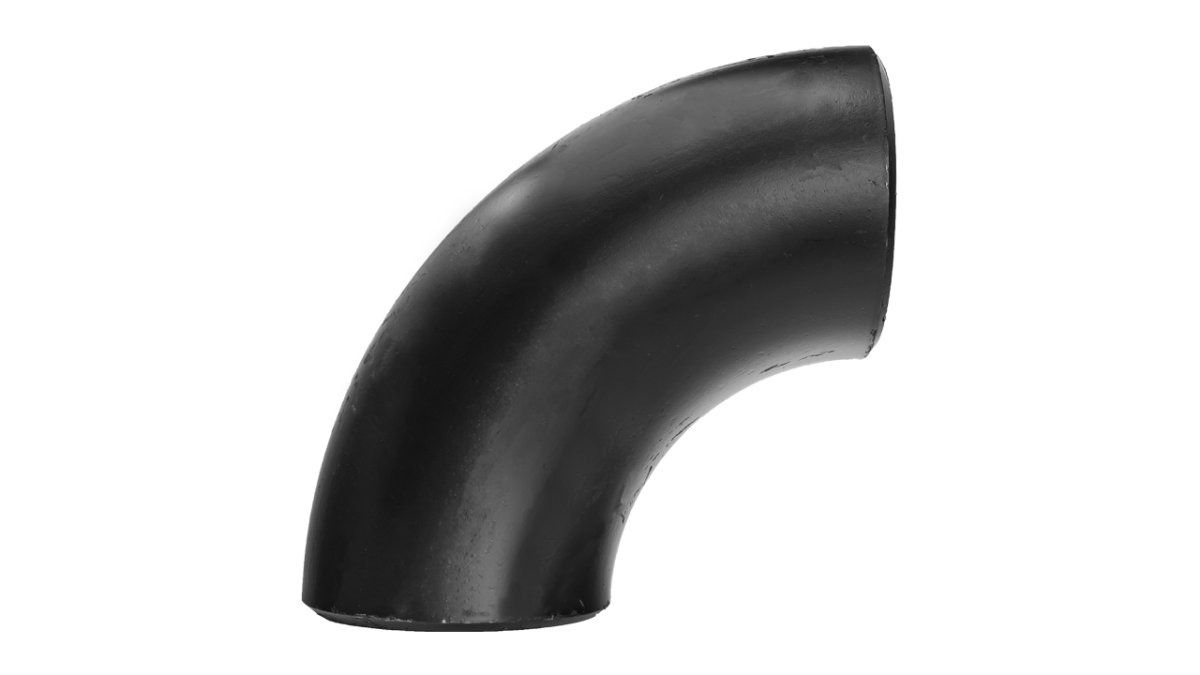

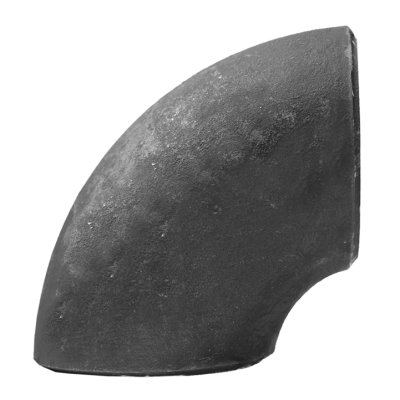

Seamless Elbows according ASME B16.9 are often used in installations, piping systems or equipment construction. Nijhuis & Wigger can supply suitable Elbows for every quality, pipe size and radius.

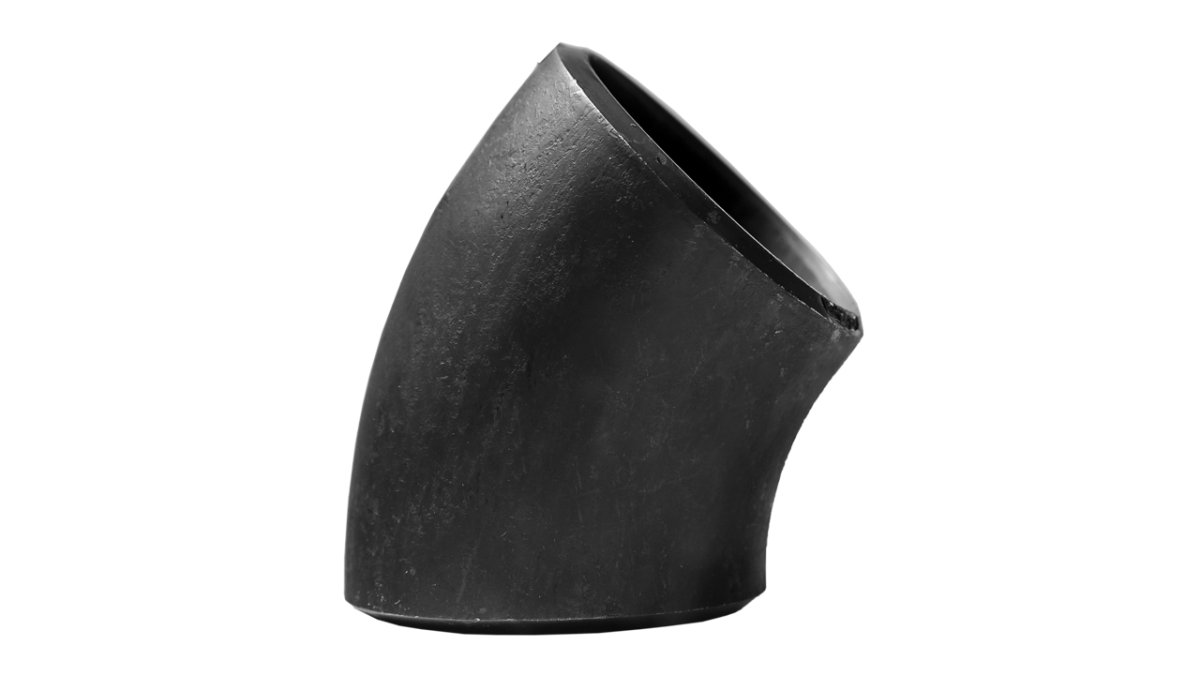

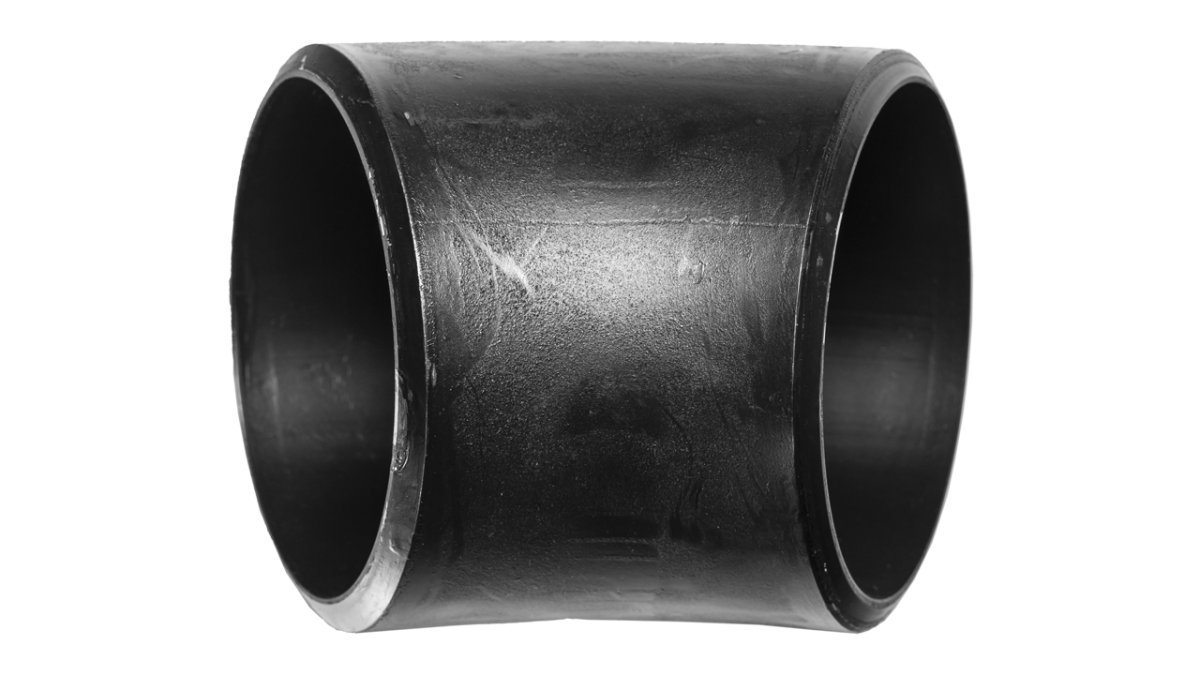

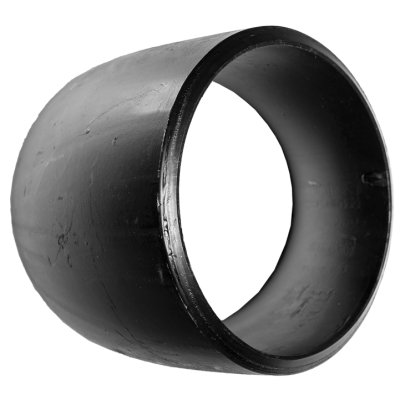

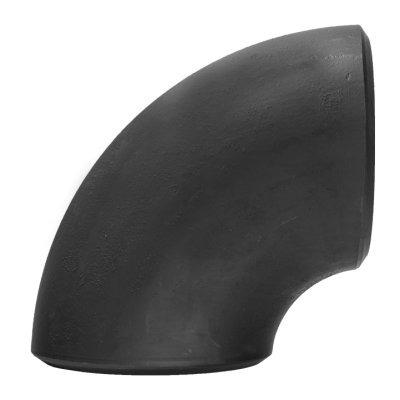

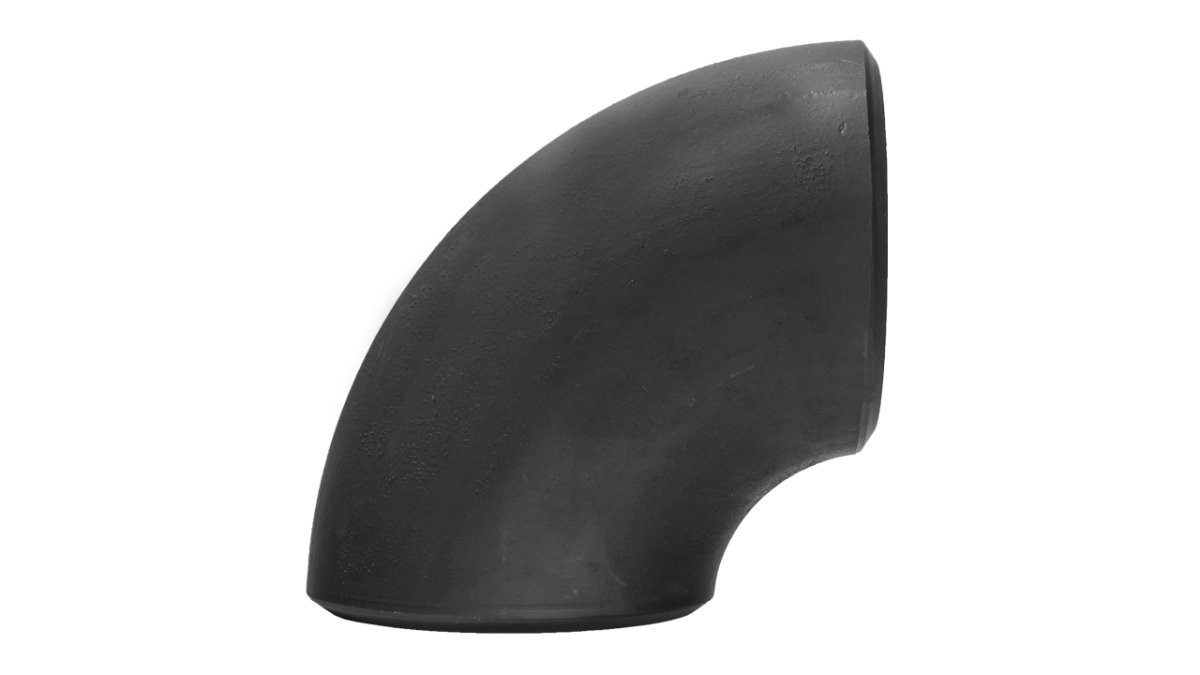

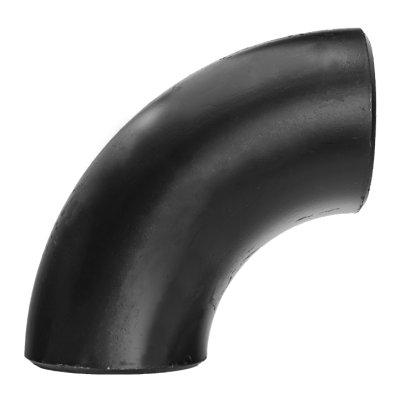

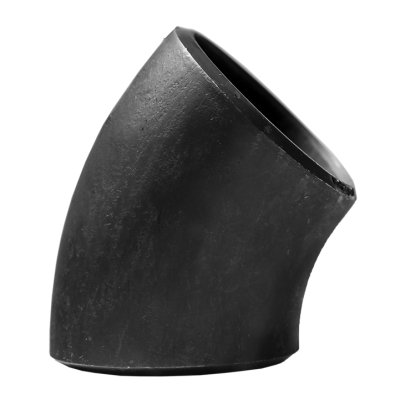

- Available in 45°, 90° and 180°
- Long Radius and Short Radius
- Dimensions up to 18”
- Multiple material grades in stock
- Different wall thicknesses available according ASME B 36.10 / 36.19 or specification
- Stock item (see stock programme in downloads)
We deliver Elbows in the following material grades:
| ASME standard |
| Carbon steel |
| A234 WPB |
| A420 WPL6 |
| A234 WP5/WP11/WP22 |
| Stainless steel |
| A403 WP316L |
| A403 WP304L |
| A403 F321H |
| F51(Duplex) / F53(Superduplex) |
| Special Alloys |
| Hastelloy C276/C22 |
According to the ASME standard Elbows are separated in:
| ASME standard | Type |
| B16.9 | Long Radius (LR) |
| B16.9 | Short Radius (SR) |
Click on one of the PDF logos to start the download.
 |
Schedule sizes |
|
Stock programme |
|
Delivery programme |

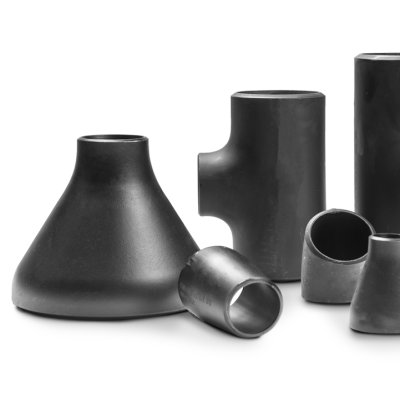

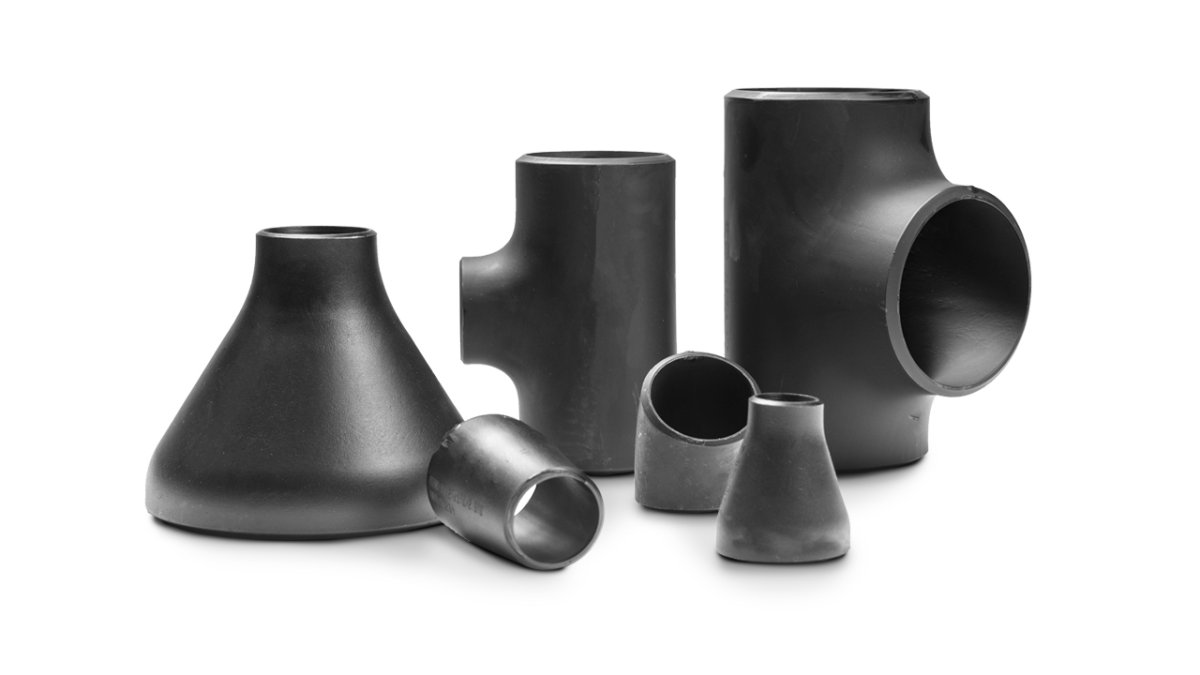

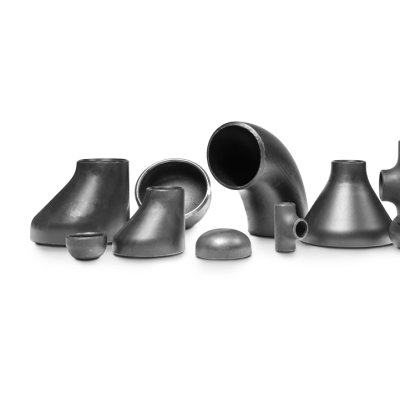

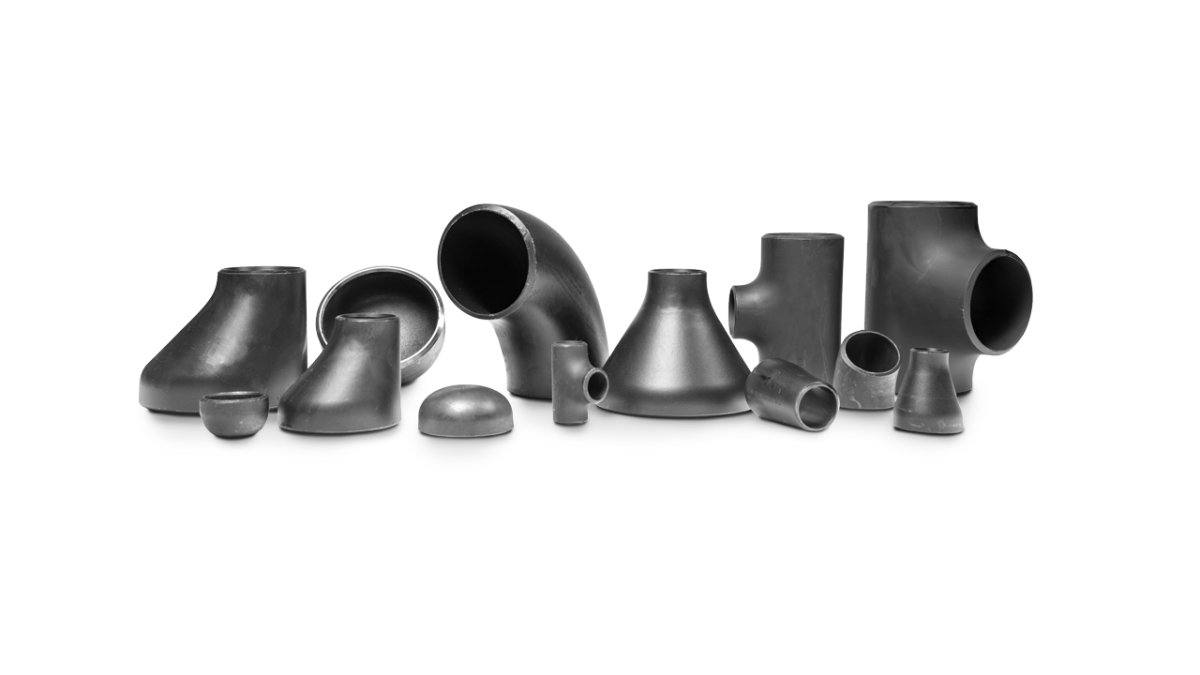

More fittings according ASME B16.9
Require matching flanges?

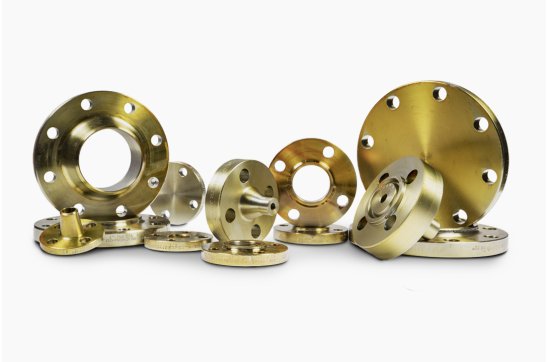

We have an extensive stock of flanges for various applications and suitable for Elbows.
Go to flanges
